Outback Trailblazer AC/DC 3" 1000W — High-Flow Submersible Solar Bore Pump Kit with 3 × 450W Panel (Max 67LPM/93m)
High-Flow Solar Pump Designed For Maximum Water Output At Shallow To Medium Depths, Delivering Reliable Volume And Efficient Off-Grid Operation For High-Demand Rural Applications.
Couldn't load pickup availability

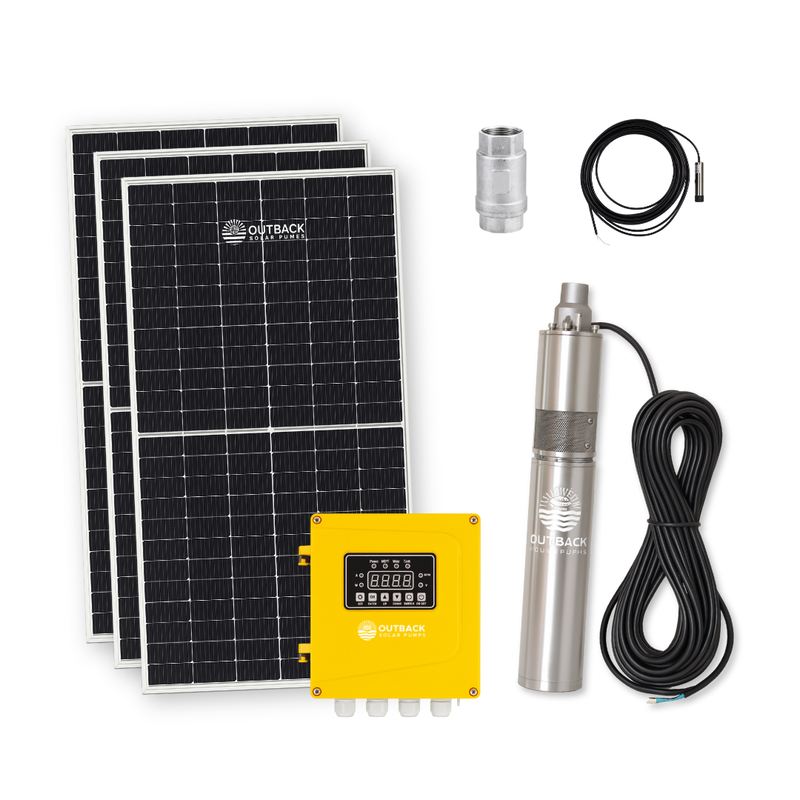

Outback Trailblazer 3" 1000W — High-Flow Submersible Solar Bore Pump Kit with Hybrid AC/DC Controller
3 × 450W Solar Panels | Max 67LPM / 93m
The Outback Trailblazer AC/DC 1000W is a high-flow solar bore pump kit engineered for applications where volume delivery is the priority. Designed for large tank filling, irrigation supply, water transfer, and demanding agricultural systems, the Trailblazer delivers exceptional flow performance while retaining strong head capability.

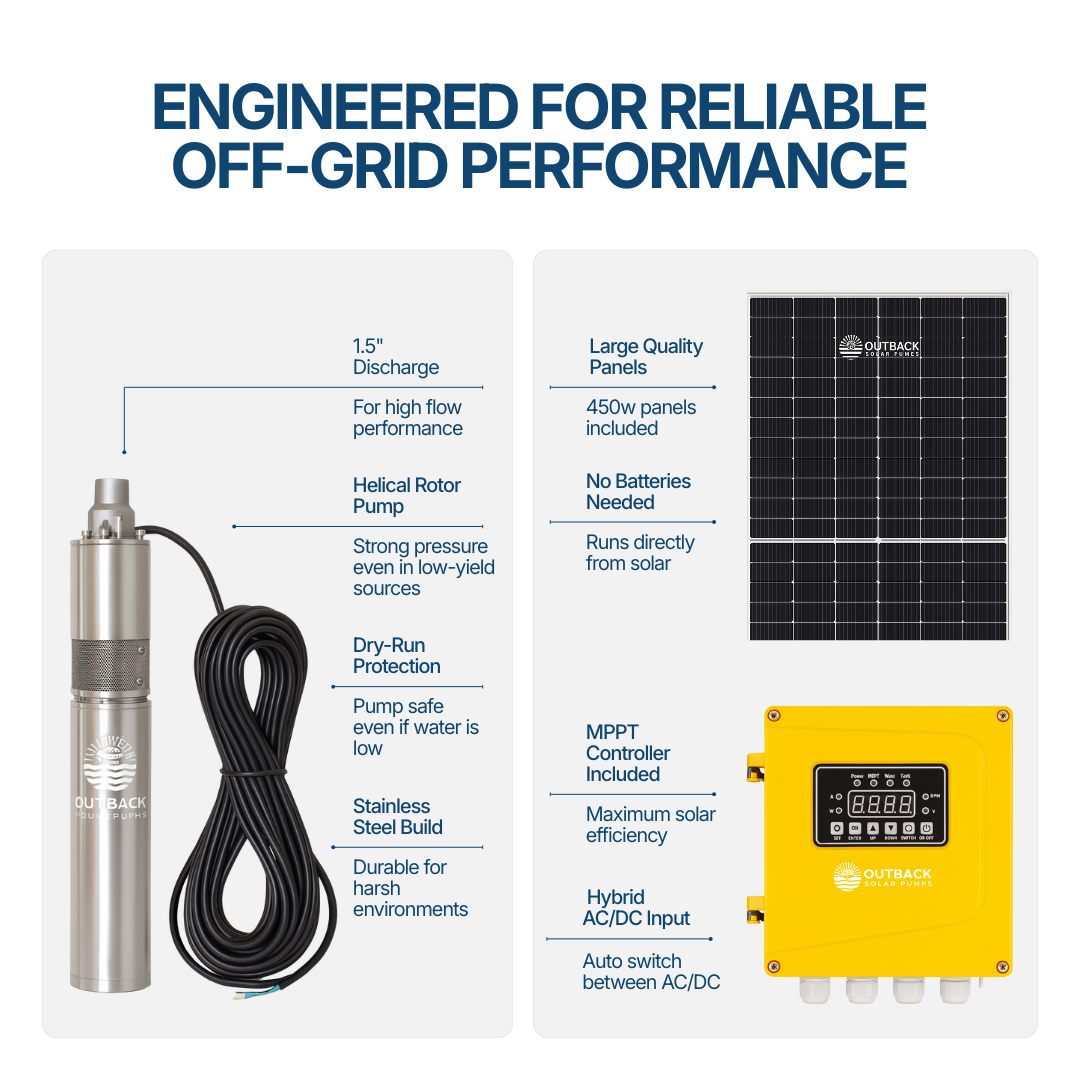

At the core of the system is a 3" stainless steel submersible pump driven by a high-efficiency brushless DC motor, paired with an AC/DC hybrid pump controller. This allows the system to operate directly from solar power or be connected to a 240V AC supply when required, providing maximum flexibility and uninterrupted operation during low-sun conditions or extended runtime needs.
The system is powered by three high-output 450W monocrystalline solar panels, supplying ample energy for fast start-up, strong mid-day performance, and reliable operation across varying light conditions. The high-flow pump design is optimised for moving large volumes of water efficiently, making it ideal for properties that require rapid tank recovery or continuous water movement.

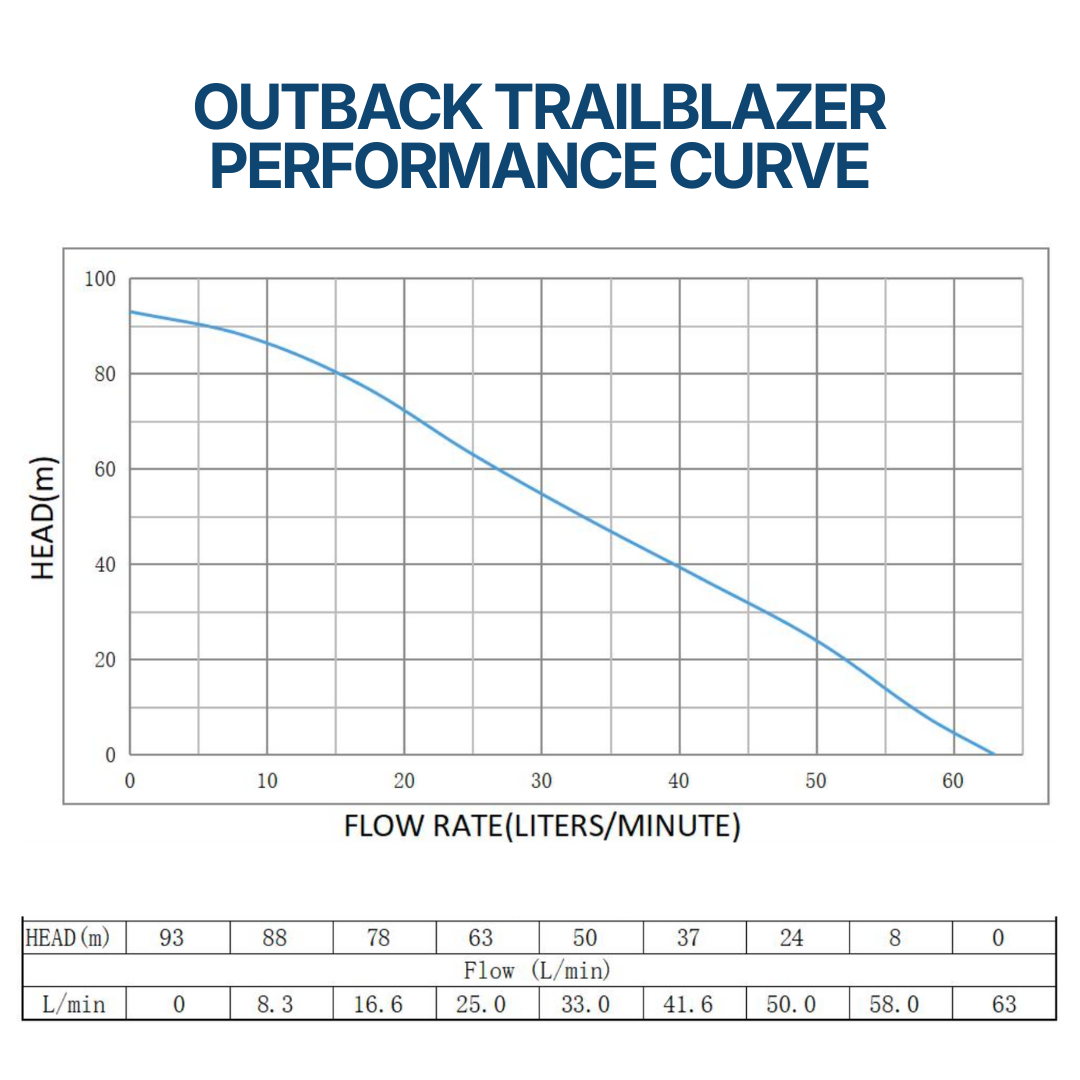

Capable of delivering up to 67 litres per minute with head performance up to 93 metres, the Outback Trailblazer AC/DC is the go-to solution for users who need serious flow capacity combined with the flexibility of hybrid solar and AC power input.
1. Standard Shipping (Included)
Standard shipping is included on most retail orders Australia-wide.
Free shipping applies to:
- Complete solar pump kits
- Solar panels (non-bulk quantities)
- Accessories ordered with kits or panels
Orders are shipped via standard road freight using a carrier selected by Outback Solar Pumps.
---
2. Multiple Items & Large Orders
Orders containing multiple pump kits or large quantities may require different packing or palletisation.
In these cases, additional freight charges may apply due to shipment size or handling requirements.
If this applies to your order, we will contact you before dispatch to confirm any additional costs.
No additional charges are applied without approval.
---
3. Solar Panels
Free shipping applies to solar panels ordered in standard quantities.
Bulk solar panel orders (including pallet quantities) are shipped separately and may incur freight charges, which will be quoted prior to dispatch.
---
4. Delivery Timeframes
Orders are typically dispatched within 1–3 business days once payment has cleared.
Delivery times vary depending on location and carrier performance. Estimated delivery times are indicative only.
---
5. Express Shipping
Express or priority shipping is not included.
Express delivery may be available on request and is quoted separately based on location, size, and carrier availability.
---
6. Authority to Leave
Deliveries are made with Authority to Leave unless otherwise requested.
Outback Solar Pumps is not responsible for loss or theft once goods are delivered to the nominated address.
---
7. Inspection on Delivery
Please inspect your order upon delivery.
Any damage must be reported within 24 hours of receipt.
24-Month Warranty – Peace of Mind Included
All Outback Solar Pump Kits are backed by a 24-month warranty covering manufacturing defects in materials under normal operating conditions.
The warranty covers repair or replacement of the product only and does not include installation, labour, freight, or any consequential or indirect costs.
What’s Covered
- Pump motor and pump end
- Solar pump controller
- Solar panels supplied in kits
What’s Not Covered
- Dry running or incorrect installation
- Sand, silt, high iron bacteria or abrasive water
- Electrical damage from incorrect wiring or voltage
- External damage or unauthorised modifications
Installation must be completed in accordance with Outback Solar Pumps installation guidelines.
Full warranty terms available in our Warranty PDF.
Product Downloads
-
Trailblazer Specifications
Download ManualComplete Specifications Details for the Outback Trailblazer Pump & Inclusions
-
Full Instruction Manual
Download ManualApplies to all Outback Solar Pumps Submersible Solar Bore Pump Kits.
-
Controller User Manual
Download ManualCovers Controller Installation, Operations, Faults and Fault Codes
OUTBACK SOLAR PUMPS
Specifications
Brand:
Product Type:
Pump Model:
Pump Technical Specifications
Max Flow:
Max Head:
Working Flow:
Pump Diameter:
Pump Type:
Motor:
Voltage:
Outlet Size:
Cable Length:
Controller Technical Specifications
Controller Type:
Solar Tracking:
Motor Start Protection:
Motor Protection:
Voltage Protection:
Dry-Run Protection:
Tank Level Control:
User Display:
Fault Diagnostics:
Cooling Method:
Ingress Rating:
Controller Input Voltage:
Solar Panel Technical Specifications
Panel Type:
Low-Light Performance:
System Compatibility:
Controller Integration:
Durability Rating:
Warranty & Lifespan:
OUTBACK SOLAR PUMPS

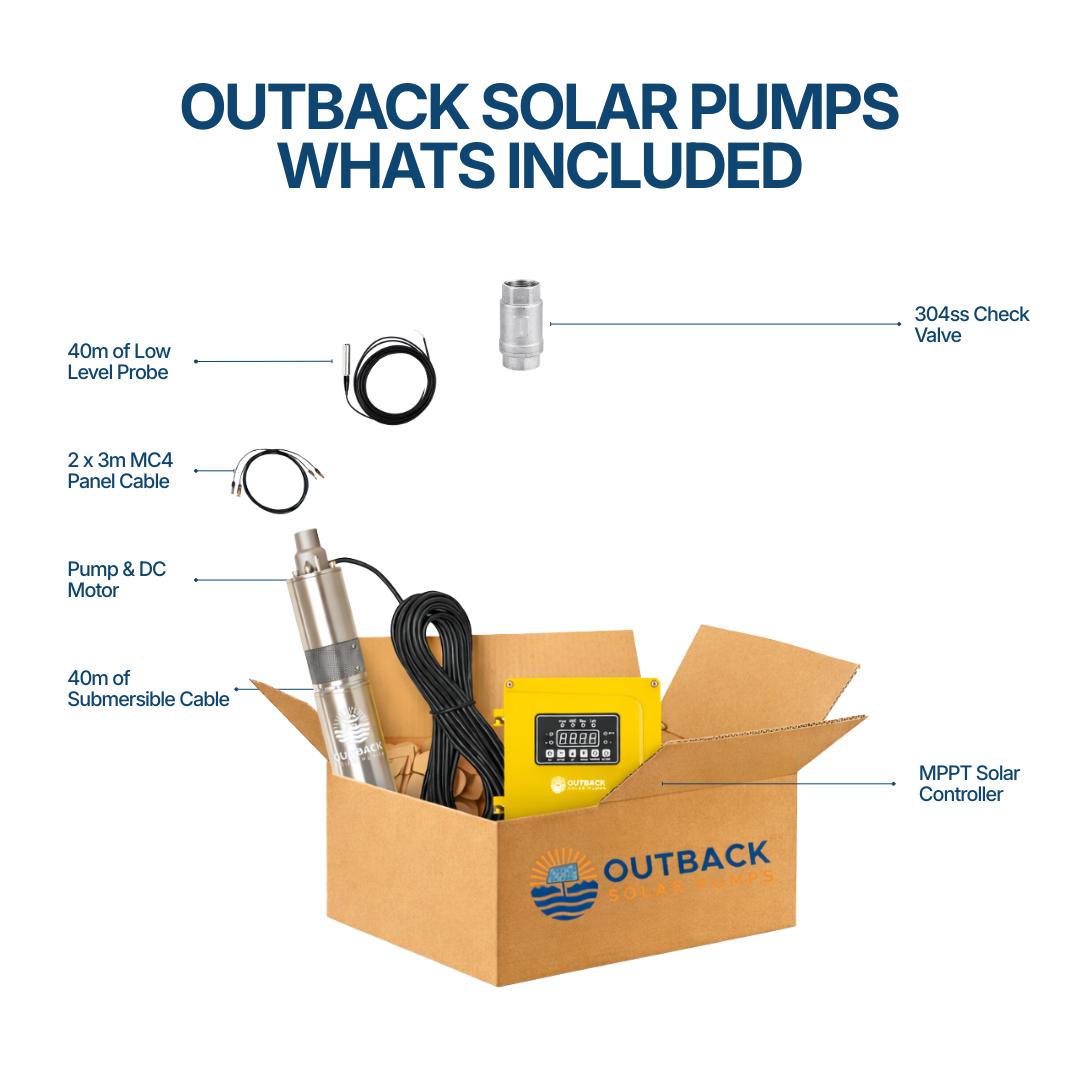

Included in the box
Why Outback Solar Pumps
Engineered As Complete Systems — Not Just Individual Components
Outback Solar Pumps are designed as fully integrated systems, where every component is selected to work together reliably in real-world conditions. Rather than mixing generic parts, each kit is engineered to deliver consistent performance & long service life.
From the pump to the panels and controller, every element is carefully matched for electrical compatibility, operating voltage, and long-term durability.
Our product range is built around practical performance — not inflated specifications. Flow rates & lift capability, defined to reflect realistic, everyday use, helping customers choose the right solution with confidence.
Why Outback Solar Pumps
Built To Perform Where It Matters Most
Every Outback Solar Pump is engineered with one priority in mind: long-term reliability in harsh, real-world conditions. From materials selection to final assembly, quality is not an add-on — it’s the foundation of every system we supply.
Our pumps use high-grade stainless steel construction, precision-balanced internal components, and brushless DC motors designed for continuous operation in remote environments. This results in smoother performance, reduced wear, and longer service life compared to lower-grade alternatives.
Why Outback Solar Pumps
Engineered For Long-Term Performance In Harsh Conditions
Every solar panel supplied with an Outback Solar Pump kit is selected based on real-world performance, durability, and long-term reliability — not just headline wattage figures. Our systems are designed to operate consistently in demanding outdoor environments where heat, dust, wind, and daily exposure are part of normal operation.
We specify Tier-1, high-efficiency solar modules built with robust construction, quality cell technology, and proven materials to ensure stable energy production over time. This approach reduces performance degradation, improves low-light operation, and protects the pumping system from the inconsistencies commonly seen with lower-grade panels.
By focusing on panel quality, compatibility, and system matching — rather than shortcuts — Outback Solar Pumps deliver dependable power year after year.
Why Outback Solar Pumps
Intelligent Control Designed To Protect Your System
At the heart of every Outback Solar Pump system is an intelligent MPPT controller built to manage power efficiently while protecting critical components. Rather than simply switching the pump on and off, the controller actively regulates how power is delivered throughout the day to ensure stable operation and long-term reliability.
Each controller continuously monitors voltage, current, and operating conditions to protect the pump from electrical stress, dry-run events, and unstable power input.
Housed in a robust, weather-resistant enclosure, Outback Solar Controllers are designed for outdoor installation in harsh environments. Clear onboard indicators provide simple status visibility.
