Outback Torrent CPM158 1200W Surface Solar Water Transfer Pump Kit with Frame
A high-flow surface solar pump for rapid tank filling, irrigation and water transfer. Delivers up to 132 L/min and 37m head with DC-only or Hybrid AC/DC options.

Including GST. Free shipping on orders Australia-Wide*
Australia Wide
Owned
Support
Warranty
We design solar pumping systems to suit your needs.
Get a free quote ›Powerful. Reliable. Built for the Outback.
The Outback Torrent is a powerful, high-flow surface solar water pumping system designed for moving larger volumes of clean water across farms and rural properties. Featuring durable cast-iron construction and an efficient brushless DC motor, the Torrent delivers up to 132 L/min with a maximum head of 37m. Its high-volume pumping capability makes it ideal for rapid tank filling, irrigation supply and transferring water from dams, tanks and creeks. Powered by a recommended array of four 450W solar panels, it is available with either a DC-only MPPT controller or Hybrid AC/DC controller for optional mains or generator backup.
Built for demanding water transfer applications, the Torrent offers an efficient solar-powered alternative to conventional surface pumping systems. Its intelligent MPPT controller is designed to make effective use of available solar energy while incorporating automatic protection against abnormal operating conditions. The complete kit includes the surface-mounted pump, sturdy mounting frame, controller and essential installation components, helping simplify setup in remote locations. Whether supplying irrigation infrastructure, filling large storage tanks or transferring water around a property, the Torrent provides strong flow performance and practical everyday reliability. Backed by a 24-month product warranty and Australian-based support, it is a versatile solution for larger rural water demands.
| Max Flow | 132 L/Min (8,200 L/Hr) |
| Max Head | 37m |
| Motor | Brushless DC (BLDC) |
| Voltage | DC Solar Input Via MPPT Controller (Four-Panel Series System) |
| Outlet Size | 25mm Female (1″ BSP) |
| Cable Length | 10m Submersible Pump Cable (Included) |
| Brand | Outback Solar Pumps |
|---|---|
| SKU | OSP-TOR-D02 |
| Max Flow | 132 L/Min (8,200 L/Hr) |
| Max Head | 37m |
| Motor | Brushless DC (BLDC) |
| Voltage | DC Solar Input Via MPPT Controller (Four-Panel Series System) |
| Outlet Size | 25mm Female (1″ BSP) |
| Cable Length | 10m Submersible Pump Cable (Included) |
| Controller Type | DC or AC/DC Hybrid MPPT Solar Pump Controller (Brushless DC) |
| Pump Type | Surface-Mounted Centrifugal Solar Pump |
| Recommended Panels | 4 x 450W |
| Working Flow | 70–80LPM @ 20m |
1 × MPPT DC or AC/DC Solar Pump Controller
4 × 450W Solar Panels
1 × 10m Submersible Motor Cable
1 x 30m Stainless Steel Electric Float Valve/Low Level Probe
2 x 3m MC4 Waterproof Electrical Connectors
1 x 40mm Foot Valve with Strainer
1 x Quick Start Guide And Installation Manual
Downloads coming soon.

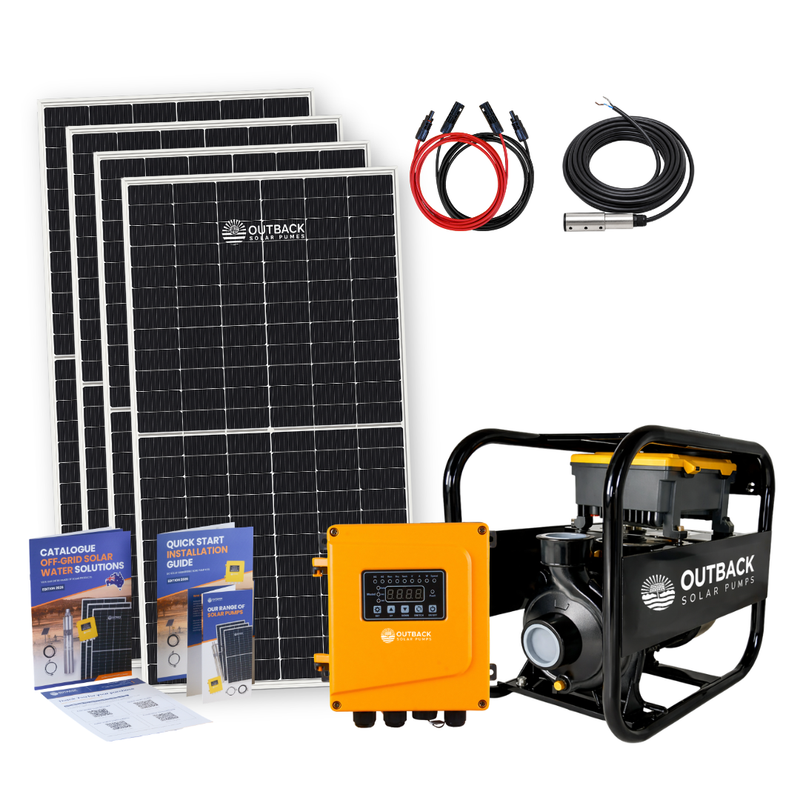

What's Included in the Kit
Everything you need to get pumping — supplied in one complete package.

Solar Surface Pump
1200W surface pump & motor with 10m cable

Solar Pump Controller
MPPT AC or DC controller with built-in protection

4 x 450W Solar Panel
Included with Solar Panel kit only

40mm Foot Valve
For suction priming in dams/creeks

30m Run-Dry Probe
Stainless steel low-level dry-run probe

Documentation
Quick Start Guide & Installation Manual
Watch the Kit Unboxing
See exactly what arrives in the box and how the kit is presented.
- Packaging overview
- What's included
- How the kit is packed
- First impressions
Product Downloads
View all downloadsIdeal For
-
Remote Water Transfer Move water where you need it, off-grid.
-
Livestock Watering Reliable water supply for livestock and farms.
-
Tank Filling Efficiently fills tanks and storage systems.
Frequently Asked Questions
No FAQs added yet.
Recommended Accessories
Complete your setup with these popular add-ons.

Outback TankMate 30m 304 Stainless Steel Probe Tank Float Switch
Controls tank water levels and automatically starts/stops the solar pump electrically. ...
$99.00

Outback AutoMate Solar Constant Pressure Headworks Kit
Creates automatic constant-pressure water supply from your solar pump system. The Outba...
$295.00

Outback Ironbark 4A – Quad Solar Panel Ground Mount Kit
The Outback Ironbark PostMount 4-A is a heavy-duty triple-panel solar ground mounting s...
$1,495.00

Outback Watchman 4G Remote Monitor Water Flow Meter with 0.9W Solar Panel
Know what your water system is doing without driving out to check it. The Outback Watch...
$895.00

Outback TankView 4G Remote Monitor Tank Level Monitor with 0.9W Solar Panel
Know Your Tank Level From Anywhere Outback TankView 4G gives you remote visibility of y...
$950.00

Outback TankLink Wireless Tank Level Float Switch
Wireless tank level monitoring and automatic pump control — configured and ready to con...
$1,295.00
How it Works

1. Sun powers the system
Solar panels generate energy.

2. Controller optimises power
MPPT controller maximises efficiency.

3. Pump delivers water
Submersible pump pushes water to surface.

4. Water where you need it
To tanks, troughs or irrigation.
