Outback Scout 1-70 DC 3" 300W Submersible Solar Bore Pump Complete Kit
A simple, reliable solar bore pump kit for shallow bores, tank filling and everyday stock watering. Delivers up to 18 L/min with a maximum head of 70m.
Including GST. Free shipping on orders Australia-Wide*
Australia Wide
Owned
Support
Warranty
We design solar pumping systems to suit your needs.
Get a free quote ›Powerful. Reliable. Built for the Outback.
The Outback Scout DC Solar Bore Pump Kit is a compact, reliable off-grid water pumping solution designed for shallow to medium-head bores, stock watering, tank filling and rural water supply. Powered by a 450W solar panel and intelligent DC MPPT controller, the Scout delivers dependable water flow without batteries, fuel or mains power.
With a durable 3" stainless steel submersible pump, brushless DC motor and helical rotor design, the Scout provides steady performance of up to 18 L/min and 70m maximum head. Complete with 40m submersible pump cable, dry-run protection and plug-and-play solar connections, it is an efficient, practical solar bore pump system built for Australian conditions.
| Max Flow | 18 L/Min (1,100 L/Hr) |
| Max Head | 70m |
| Pump Diameter | 75mm (3") |
| Motor | Brushless DC |
| Voltage | DC Solar Input Via MPPT Controller (Single-Panel System) |
| Outlet Size | 25mm Male (1″ BSP) |
| Cable Length | 40m Submersible Pump Cable (Included) |
| Brand | Outback Solar Pumps |
|---|---|
| SKU | OSP-3SCO-18-70-1P |
| Max Flow | 18 L/Min (1,100 L/Hr) |
| Max Head | 70m |
| Pump Diameter | 75mm (3") |
| Motor | Brushless DC |
| Voltage | DC Solar Input Via MPPT Controller (Single-Panel System) |
| Outlet Size | 25mm Male (1″ BSP) |
| Cable Length | 40m Submersible Pump Cable (Included) |
| Controller Type | DC MPPT Solar Pump Controller (Brushless DC) |
| Pump Type | Screw Rotor / Helical Rotor |
| Warranty | 2-Year Pump And Controller Warranty & 30-Year Linear Solar Panel Performance Guarantee |
| Recommended Panels | 1 x 450W |
| Working Flow | 7–8LPM @ 50m |

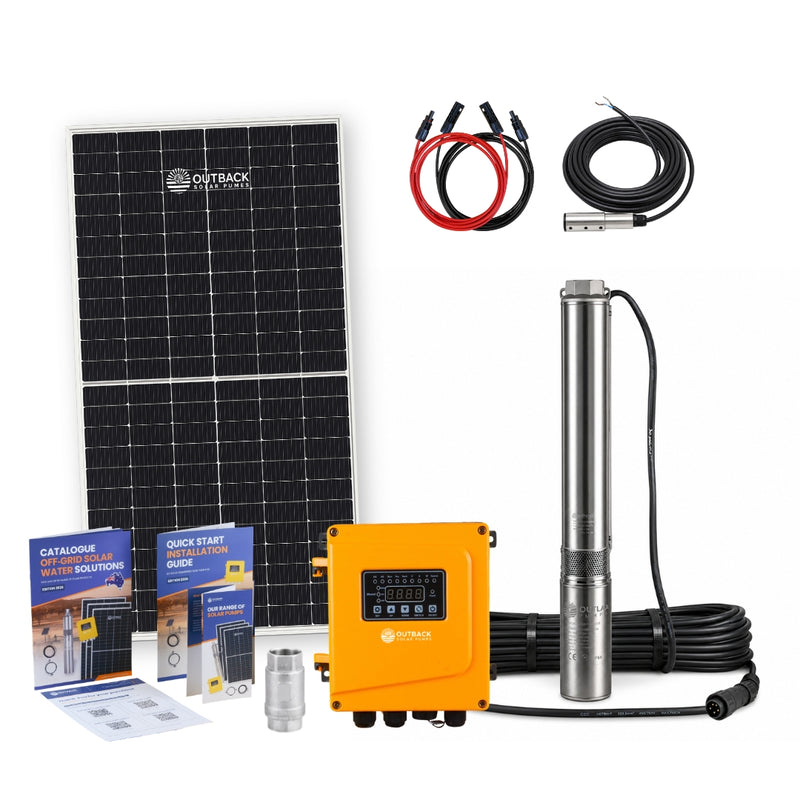

1 × MPPT DC Solar Pump Controller
1 × 450W Solar Panels
1 × 40m Submersible Motor Cable & Plug
1 x 40m Submersible Nylon Safety Cable
1 × 40m Stainless Steel Bore Low-Level Probe
2 x 3m MC4 Waterproof Electrical Connectors
1 x 25mm 304ss Non-Return Check Valve
1 x Quick Start Guide And Installation Manual
Downloads coming soon.
Product Downloads
- OSP Scout Specifications 2026
- OSP Controller Installation Guide
- OSP Controller Wiring Diagram
- OSP Quick Install Guide
Ideal For
-
Tank Filling Efficiently fills tanks and storage systems.
-
Remote Water Transfer Move water where you need it, off-grid.
-
Livestock Watering Reliable water supply for livestock and farms.
Frequently Asked Questions
Can I install the Outback Scout myself?
Yes. The Outback Scout is designed as a simple DIY-friendly solar bore pump kit, with a plug-and-play solar connection, dedicated controller and 40m of submersible pump cable included. You will still need to safely mount the solar panel, lower and secure the pump correctly, and connect your delivery pipework, but the electrical setup is designed to be straightforward without complicated wiring.
Is the Scout suitable for filling a tank?
Yes. The Scout is ideal for smaller bore water supply applications such as filling storage tanks, supplying livestock trough tanks and transferring water in off-grid locations. It is best suited to applications requiring up to 18 LPM, with a maximum head rating of 70m. Actual flow will depend on your bore depth, vertical lift, pipe run and available sunlight.
How long is the motor cable?
The Outback Scout includes 40m of 2.5mm2 submersible black rubberflex cable with a quick connector on the end pre-spliced ready to go!
How it Works
1. Sun powers the system
Solar panels generate energy.
2. Controller optimises power
MPPT controller maximises efficiency.
3. Pump delivers water
Submersible pump pushes water to surface.
4. Water where you need it
To tanks, troughs or irrigation.
