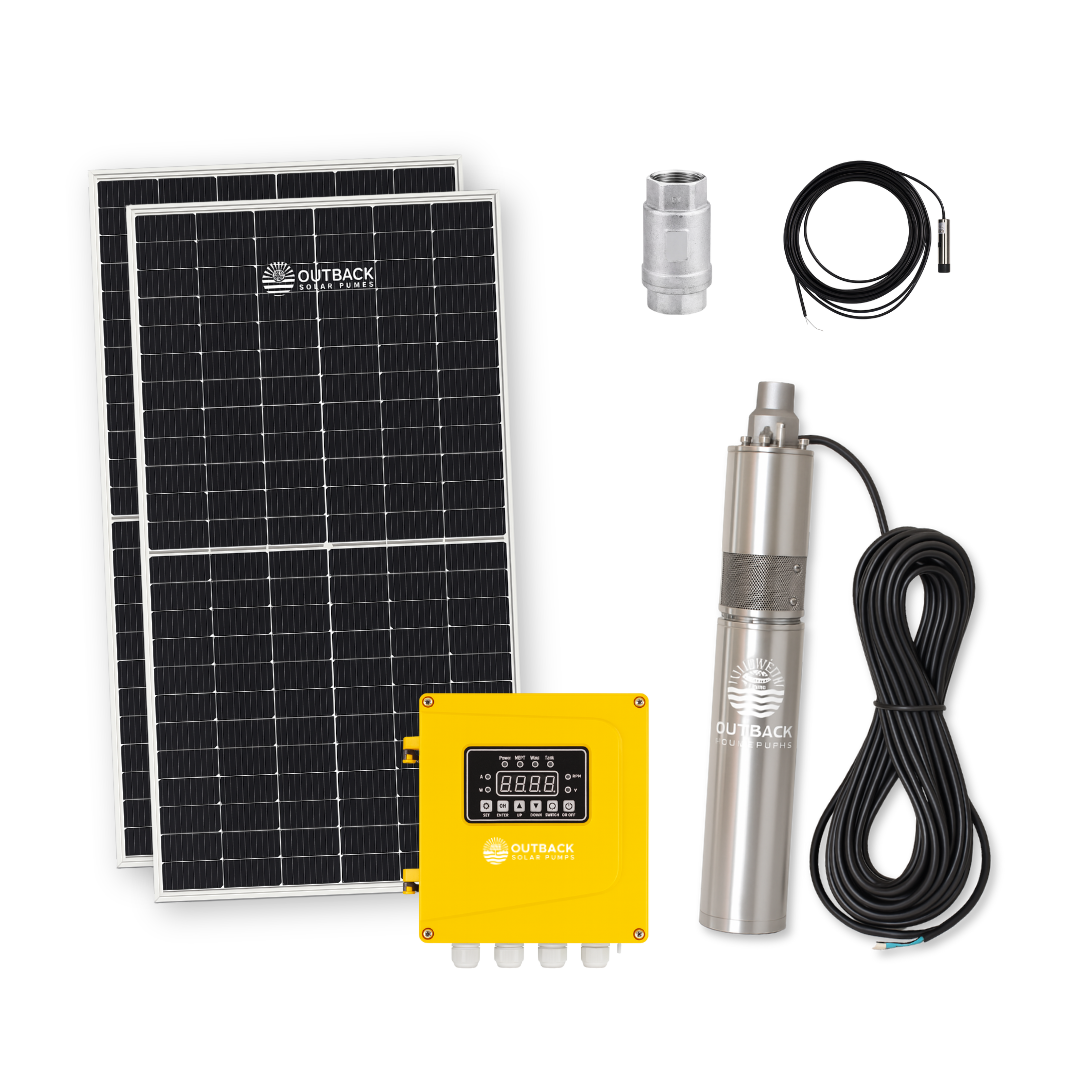

Outback Pioneer 1-100 AC/DC Hybrid 3" 600W Submersible Solar Bore Pump Complete Kit
A higher-pressure AC/DC solar bore pump kit for deeper bores and reliable rural water supply. Delivers up to 18 L/min with a maximum head of 100m.
Including GST. Free shipping on orders Australia-Wide*
Australia Wide
Owned
Support
Warranty
We design solar pumping systems to suit your needs.
Get a free quote ›Powerful. Reliable. Built for the Outback.
The Outback Pioneer AC/DC Solar Bore Pump Kit is designed for properties needing reliable water supply from deeper bores or higher-pressure systems. Powered by 2 × 450W solar panels and an intelligent AC/DC MPPT controller, the Pioneer can operate directly from solar power with the flexibility of AC or generator backup when required.

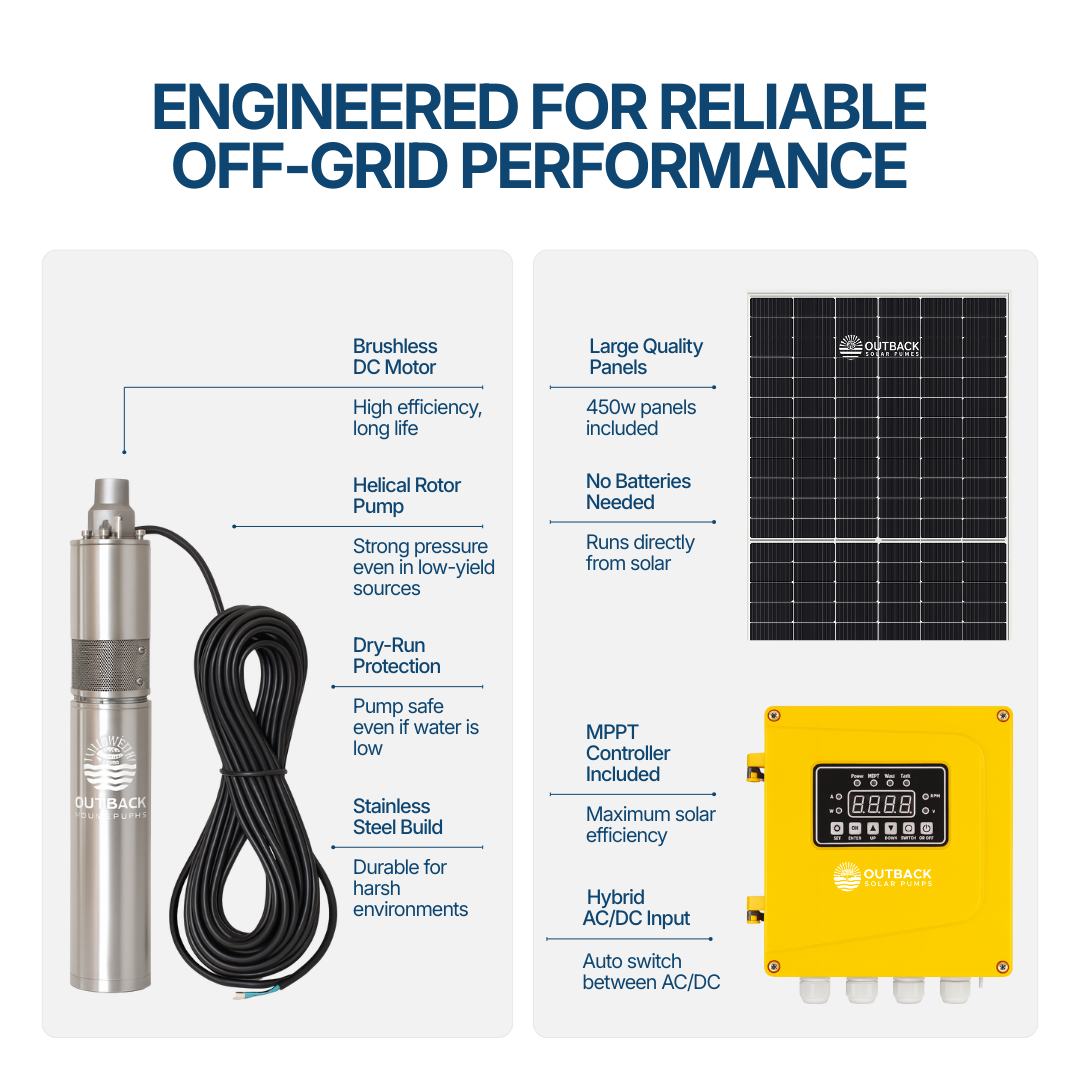

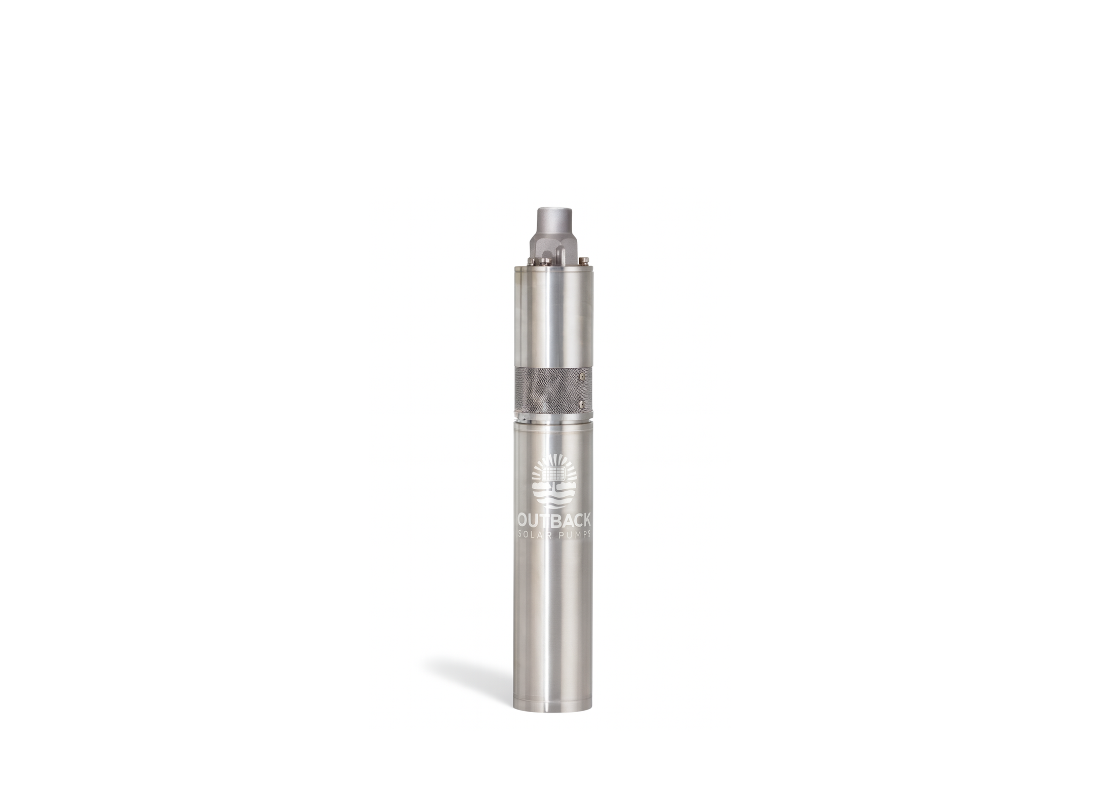

Featuring a durable 3" stainless steel submersible pump, brushless motor and efficient helical rotor design, the Pioneer delivers up to 18 L/min and 100m maximum head. Complete with 40m submersible pump cable, dry-run protection and plug-and-play solar connections, it is a dependable solar bore pump solution for stock watering, tank filling and off-grid rural water supply.

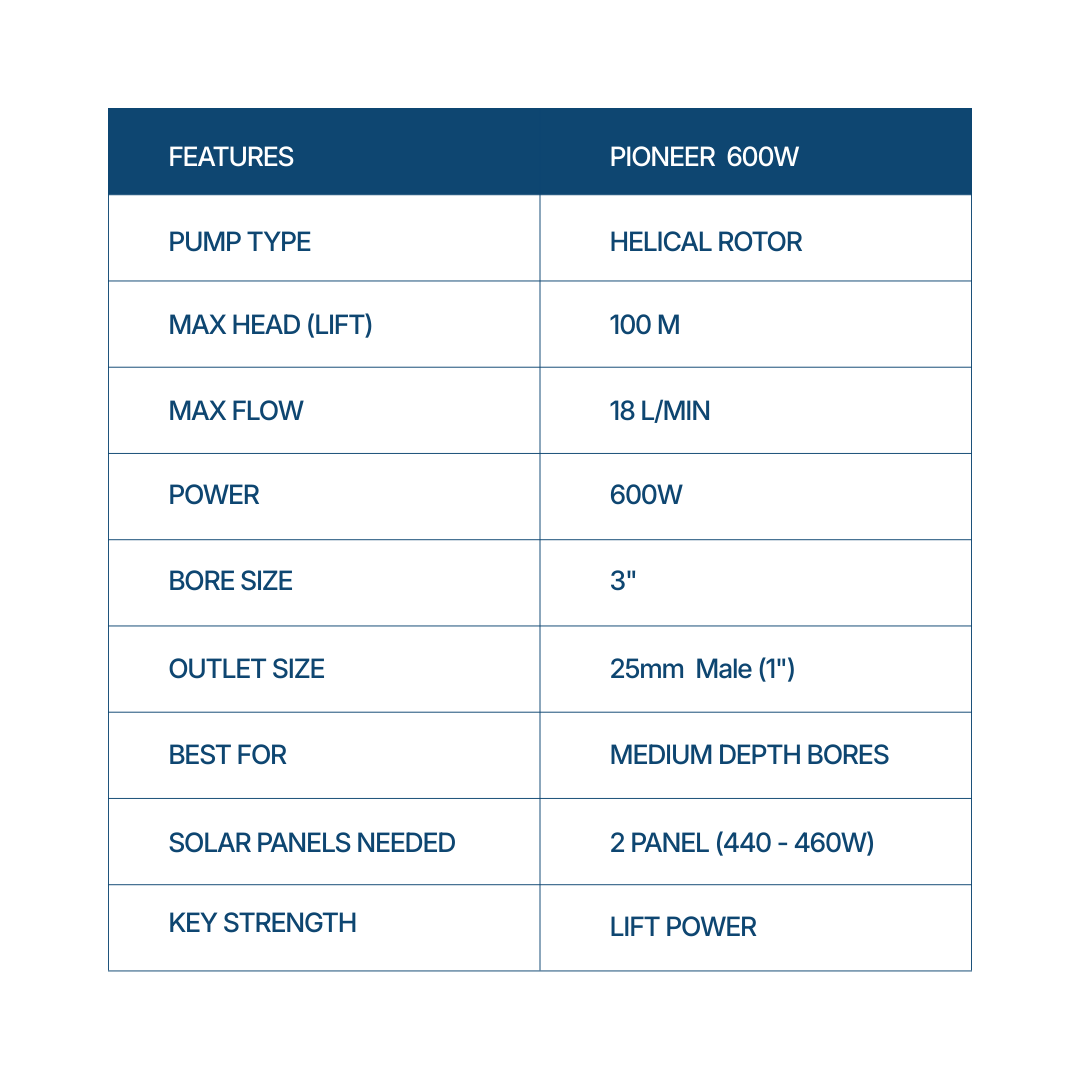

| Max Flow | 18 L/Min (1,100 L/Hr) |
| Max Head | 100m |
| Pump Diameter | 75mm (3") |
| Motor | Brushless DC |
| Voltage | DC Solar Input Via MPPT Controller (Optimised For Two-Panel Series Operation) |
| Outlet Size | 25mm Male (1″ BSP) |
| Cable Length | 40m Submersible Pump Cable (Included) |
| Brand | Outback Solar Pumps |
|---|---|
| SKU | OSP-3PIO-18-100-2P |
| Max Flow | 18 L/Min (1,100 L/Hr) |
| Max Head | 100m |
| Pump Diameter | 75mm (3") |
| Motor | Brushless DC |
| Voltage | DC Solar Input Via MPPT Controller (Optimised For Two-Panel Series Operation) |
| Outlet Size | 25mm Male (1″ BSP) |
| Cable Length | 40m Submersible Pump Cable (Included) |

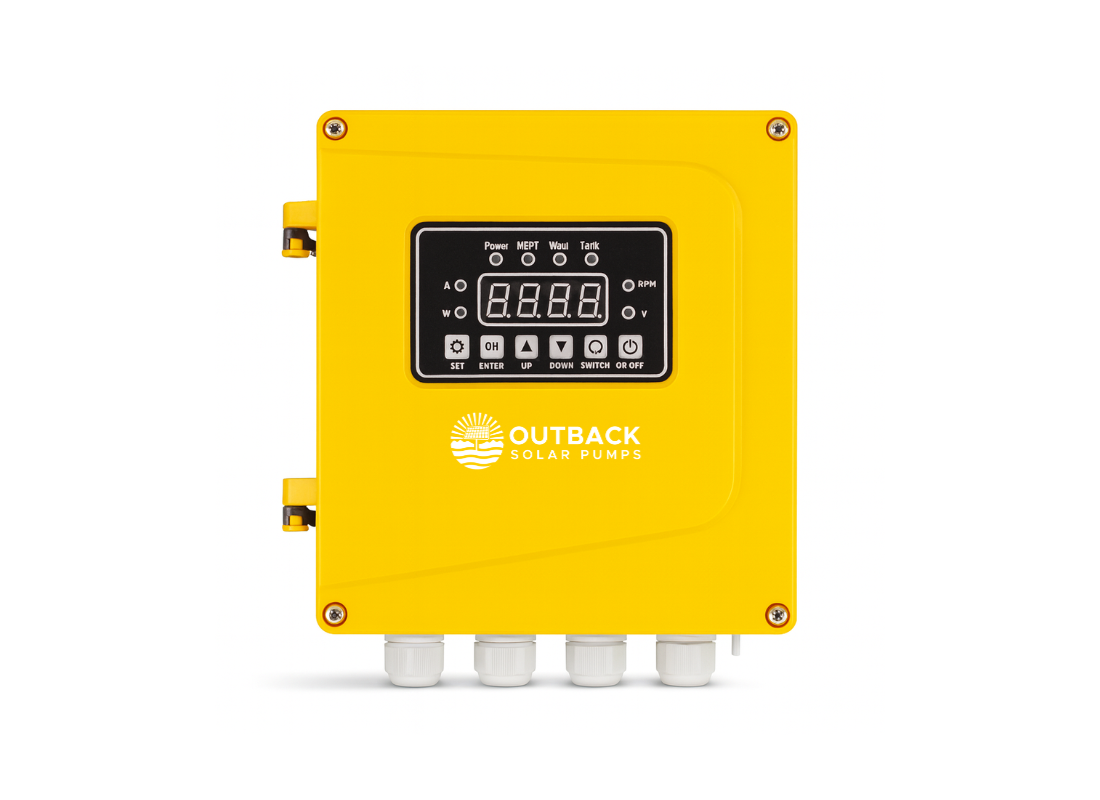

| Controller Type | AC/DC Hybrid MPPT Solar Pump Controller (Brushless DC) |
| Pump Type | Screw Rotor / Helical Rotor |
| Warranty | 2-Year Pump And Controller Warranty & 30-Year Linear Solar Panel Performance Guarantee |
| Recommended Panels | 2 x 450W |

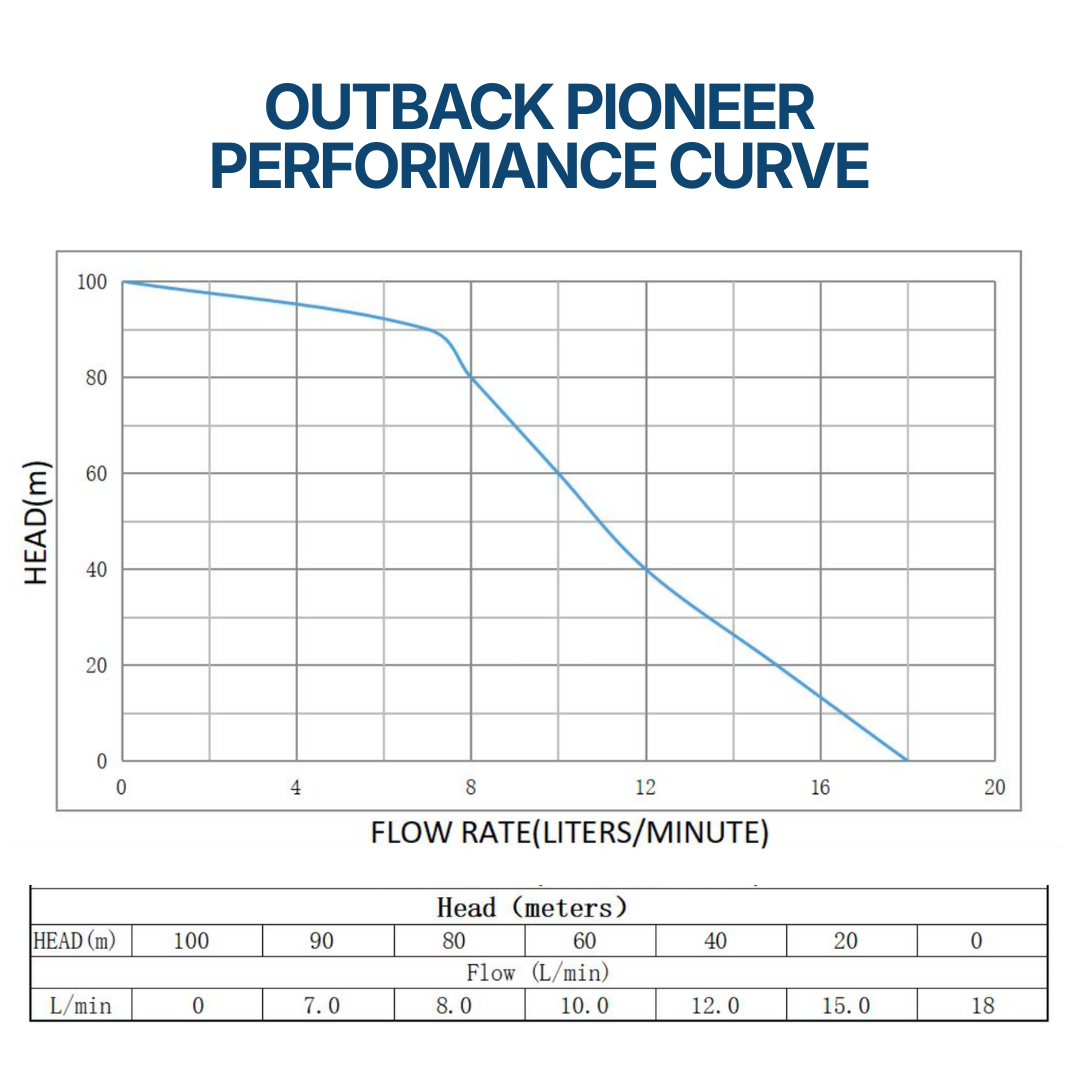

| Working Flow | 12–14LPM @ 50m |

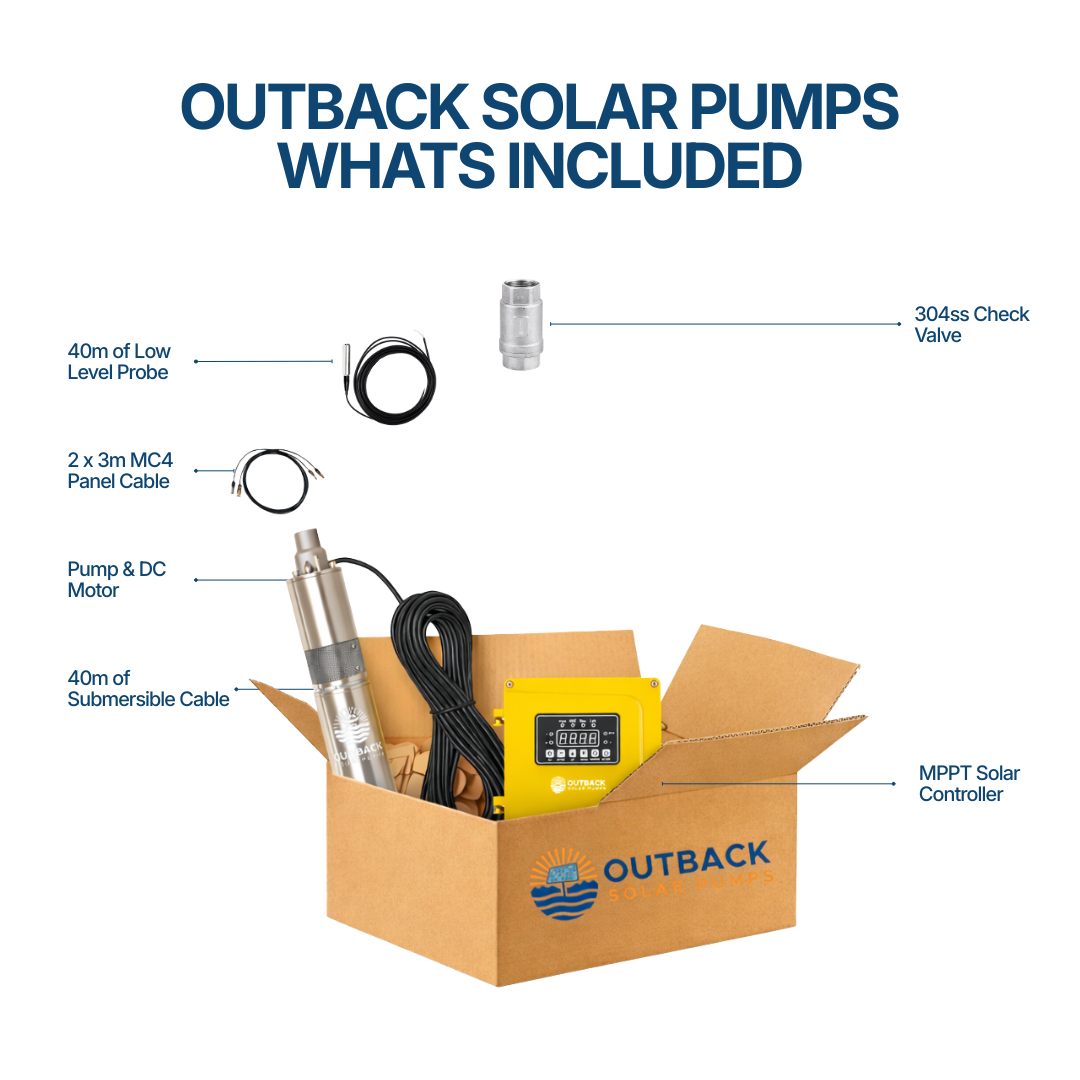

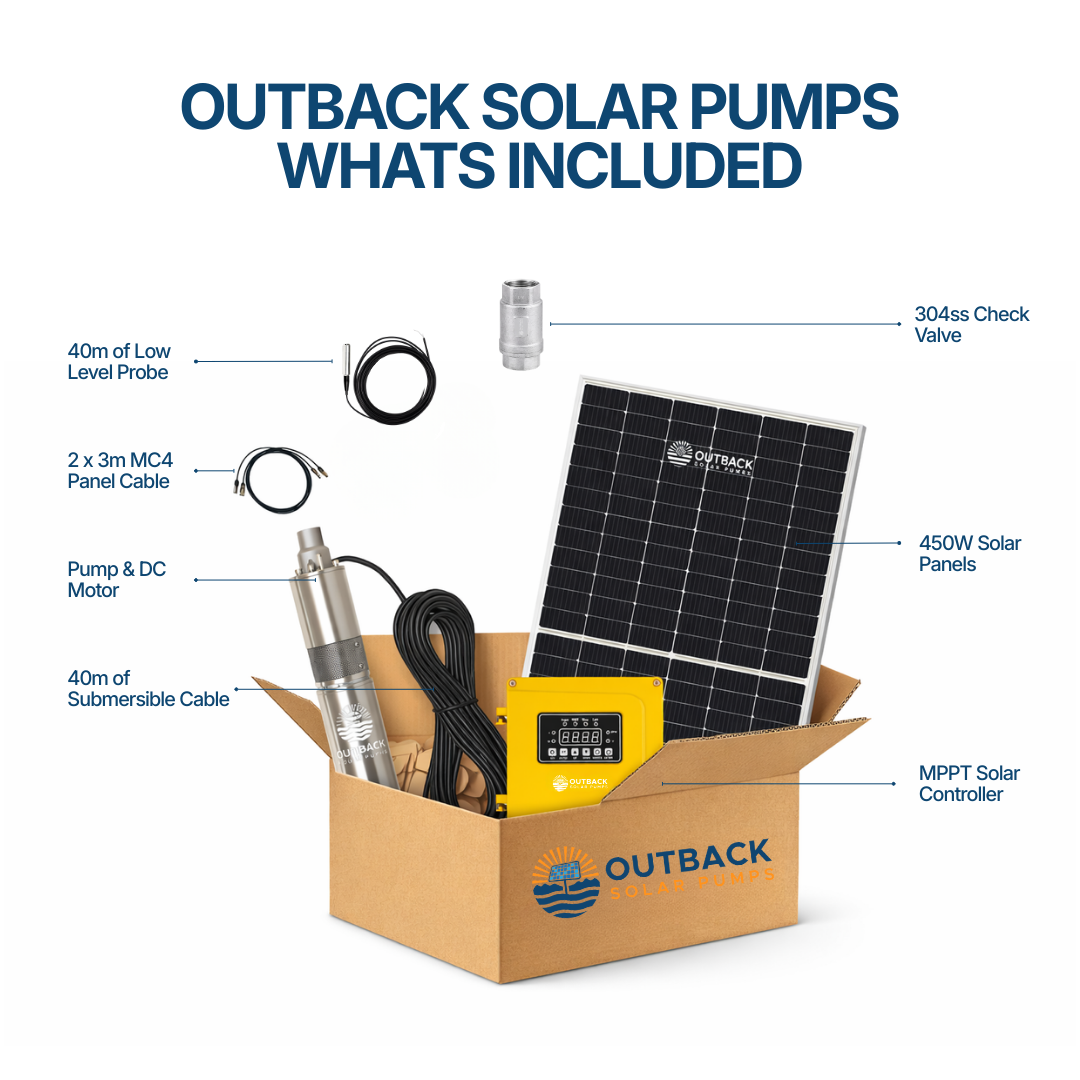

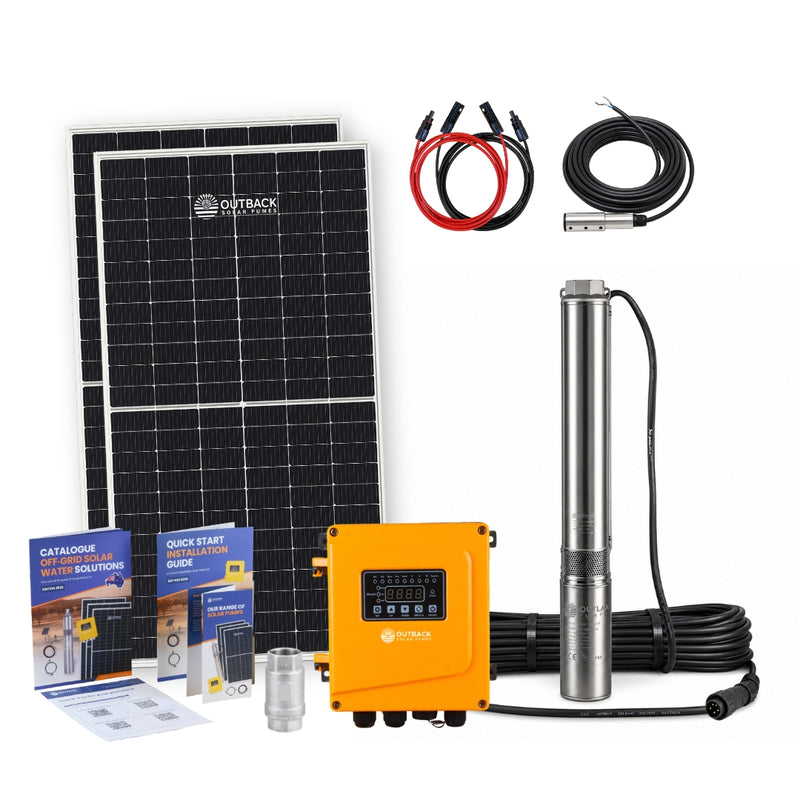

1 × MPPT AC/DC Solar Pump Controller

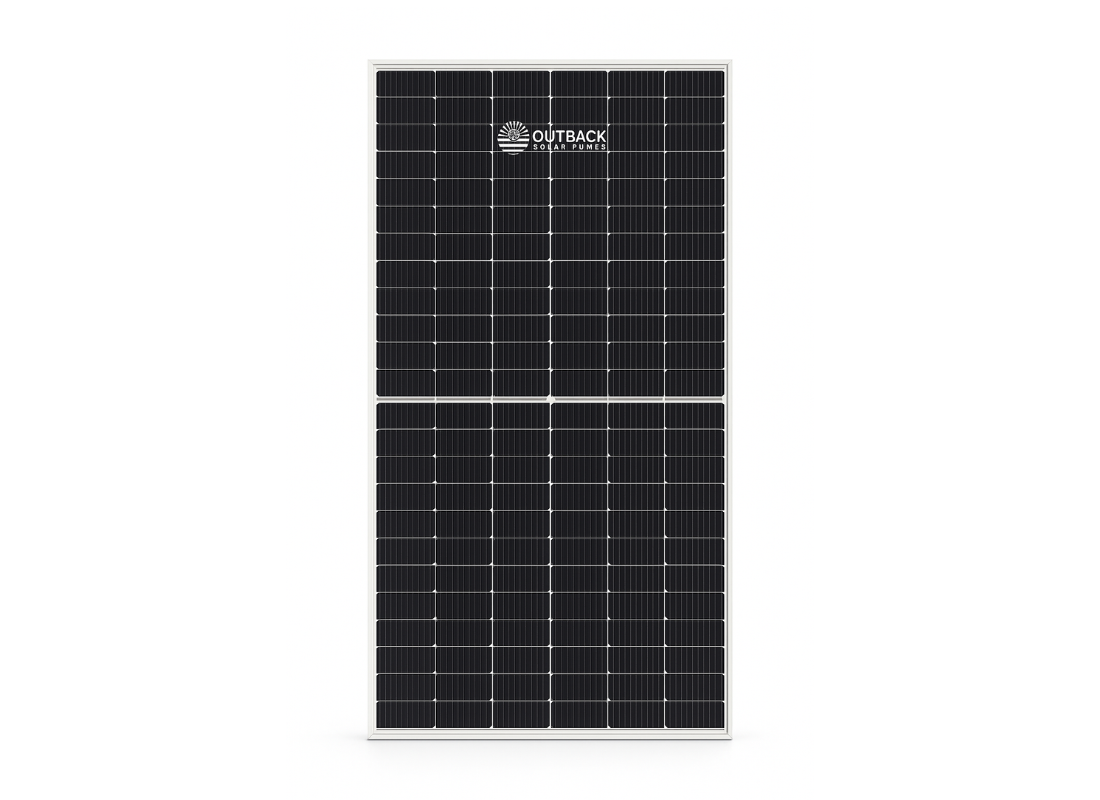

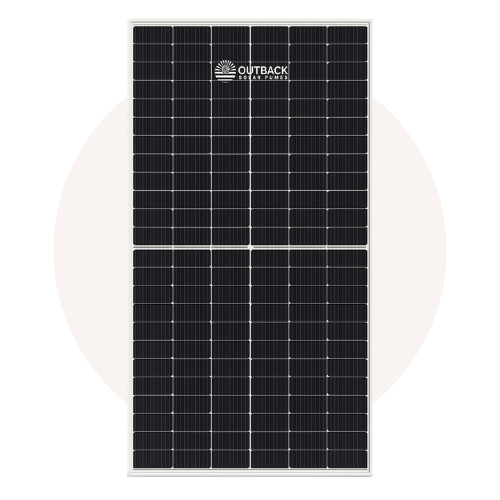

2 × 450W Solar Panels

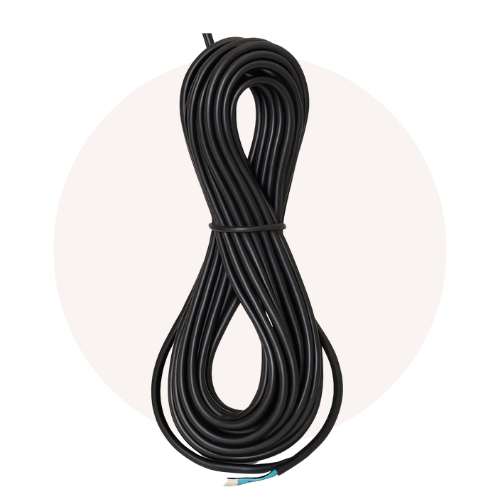

1 × 40m Submersible Motor Cable & Plug
1 x 40m Submersible Nylon Safety Cable
1 × 40m Stainless Steel Bore Low-Level Probe
2 x 3m MC4 Waterproof Electrical Connectors

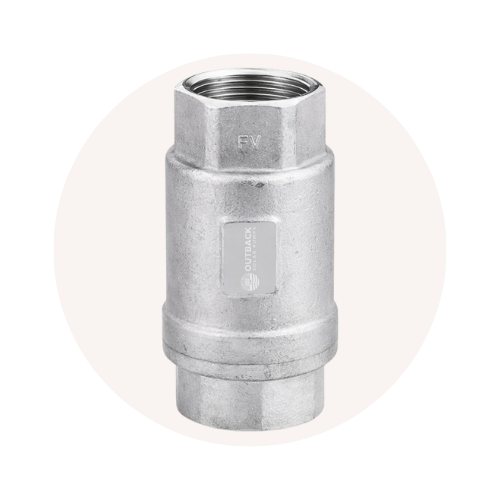

1 x 25mm 304ss Non-Return Check Valve
1 x Quick Start Guide And Installation Manual
Downloads coming soon.
Product Downloads
- OSP Pioneer Specifications 2026
- OSP Controller Installation Guide
- OSP Controller Wiring Diagram
- OSP Quick Install Guide

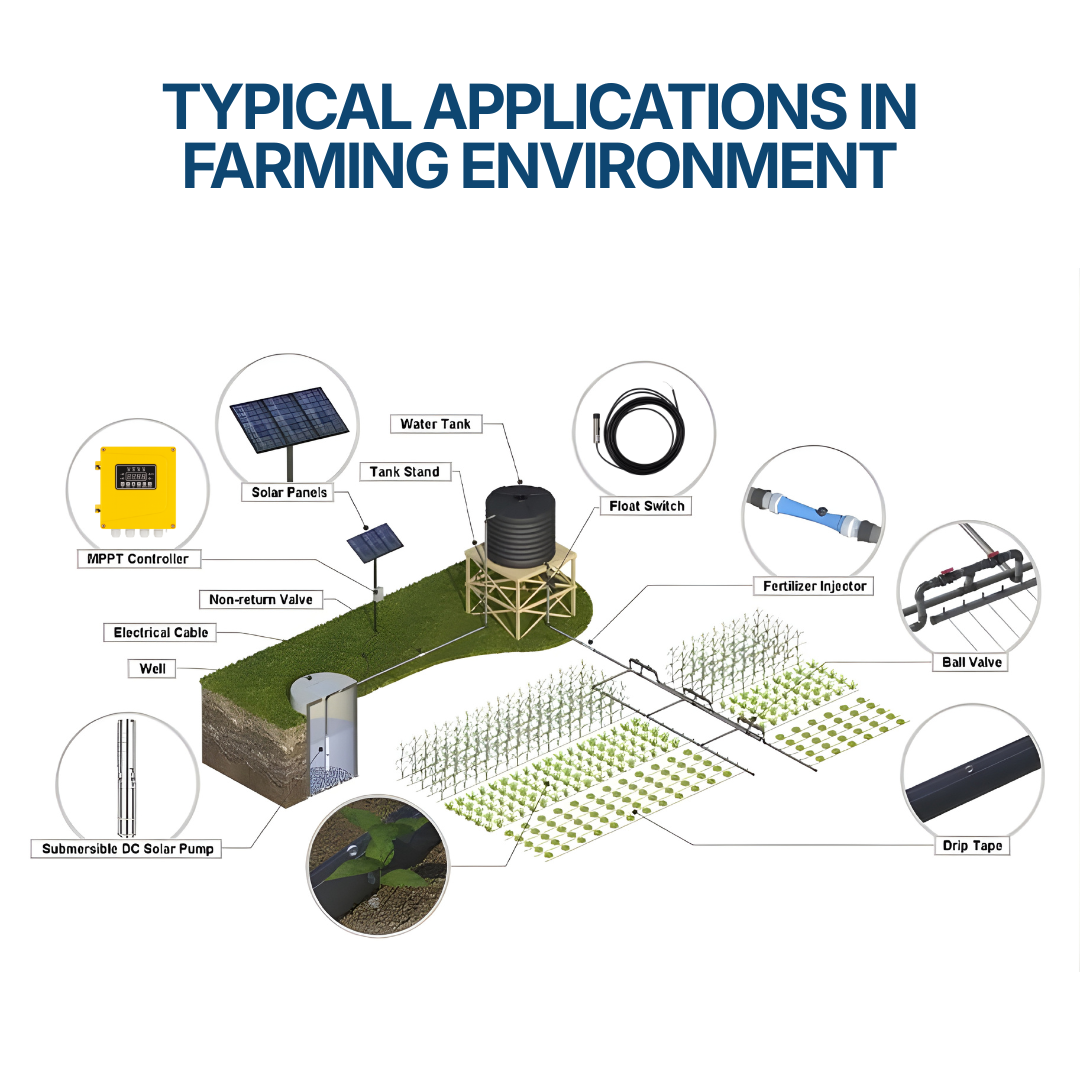

Ideal For
-
Livestock Watering Reliable water supply for livestock and farms.
-
Remote Water Transfer Move water where you need it, off-grid.
-
Tank Filling Efficiently fills tanks and storage systems.
Frequently Asked Questions
Is the Pioneer designed for high flow or greater lift?
The Pioneer is primarily designed for greater lift rather than high flow. It delivers up to 18 L/min with a maximum head of 100m, making it ideal for deeper or higher-pressure bore applications where reliable water lifting capability is more important than maximum volume.
Can the Outback Pioneer operate from backup power?
Yes. The Pioneer includes an AC/DC MPPT controller, allowing it to run directly from its supplied solar panels with the option of compatible AC or generator backup when required. This provides additional flexibility for important rural water supply applications.
When should I choose the Pioneer instead of the Scout?
Choose the Pioneer when you need greater lift or pressure from your bore. While both models deliver up to 18 L/min, the Pioneer provides a maximum head of 100m compared with the Scout’s 70m, making it better suited to deeper bores or more demanding water delivery requirements.
How it Works
1. Sun powers the system
Solar panels generate energy.
2. Controller optimises power
MPPT controller maximises efficiency.
3. Pump delivers water
Submersible pump pushes water to surface.
4. Water where you need it
To tanks, troughs or irrigation.
