Outback Pathfinder QB60 AC/DC Hybrid 800W Surface Solar Water Transfer Pump Kit with Frame
A surface-mounted AC/DC solar pump kit for transferring water from dams, tanks & creeks. Delivers up to 37 L/min with a maximum head of 62m.
Including GST. Free shipping on orders Australia-Wide*
Australia Wide
Owned
Support
Warranty
We design solar pumping systems to suit your needs.
Get a free quote ›Powerful. Reliable. Built for the Outback.
The Outback Pathfinder AC/DC Solar Surface Pump Kit is designed for efficiently moving water from dams, tanks, creeks and storage systems. Powered by 2 × 450W solar panels and an intelligent AC/DC MPPT controller, the Pathfinder operates directly from solar power with the flexibility of AC or generator backup when required.
Featuring a durable 800W brushless surface pump, the Pathfinder delivers up to 37 L/min and 62m maximum head. Complete with a 40mm Philmac foot valve, low-water protection and plug-and-play solar connections, it is an efficient solar water transfer pump solution for stock watering, tank filling, light irrigation and general rural water supply
| Max Flow | 37 L/Min (2,200 L/Hr) |
| Max Head | 62m |
| Motor | Brushless DC (BLDC) |
| Voltage | DC Solar Input Via MPPT Controller (Two-Panel Series System) |
| Outlet Size | 25mm Female (1″ BSP) |
| Cable Length | 10m Submersible Pump Cable (Included) |
| Brand | Outback Solar Pumps |
|---|---|
| SKU | OSP-1PAT-37-62-2P |
| Max Flow | 37 L/Min (2,200 L/Hr) |
| Max Head | 62m |
| Motor | Brushless DC (BLDC) |
| Voltage | DC Solar Input Via MPPT Controller (Two-Panel Series System) |
| Outlet Size | 25mm Female (1″ BSP) |
| Cable Length | 10m Submersible Pump Cable (Included) |
| Controller Type | AC/DC Hybrid MPPT Solar Pump Controller (Brushless DC) |
| Pump Type | Surface-Mounted Centrifugal Solar Pump |
| Recommended Panels | 2 x 450W |
| Working Flow | 15–20LPM @ 35m |

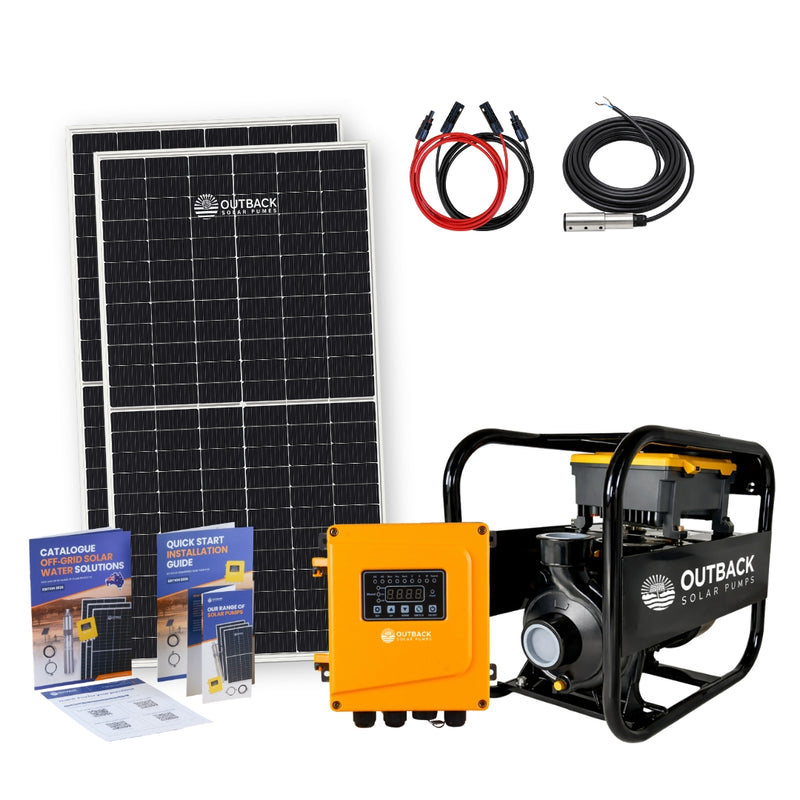

1 × MPPT AC/DC Solar Pump Controller
2 × 450W Solar Panels
1 × 10m Submersible Motor Cable & Plug
1 × 40m Stainless Steel Bore Low-Level Probe
1 x 30m Stainless Steel Electric Float Valve
2 x 3m MC4 Waterproof Electrical Connectors
1 x 40mm Philmac Foot Valve with Strainer
1 x Quick Start Guide And Installation Manual
Downloads coming soon.
Product Downloads
- OSP Pathfinder Specifications 2026
- OSP Controller Installation Guide
- OSP Controller Wiring Diagram
- OSP Quick Install Guide
Ideal For
-
Remote Water Transfer Move water where you need it, off-grid.
-
Livestock Watering Reliable water supply for livestock and farms.
-
Tank Filling Efficiently fills tanks and storage systems.
Frequently Asked Questions
What applications is the Outback Pathfinder best suited for?
The Pathfinder is ideal for transferring water between tanks, pumping from dams or creeks, supplying stock watering systems and supporting light irrigation. It delivers up to 37 L/min with a maximum head of 62m, making it a practical surface water transfer solution for rural properties.
Why does the Pathfinder include a foot valve?
As a surface-mounted pump, the Pathfinder draws water through a suction line rather than operating underwater. The included foot valve helps keep the suction line primed and reduces water draining back when the pump stops, supporting reliable startup and operation.
What is the maximum suction lift of the Outback Pathfinder?
The Outback Pathfinder has a maximum suction lift of up to 8 metres under suitable installation conditions. However, for optimal performance, easier priming and more reliable water flow, we recommend keeping the suction lift to approximately 4–5 metres or less wherever possible.
How it Works
1. Sun powers the system
Solar panels generate energy.
2. Controller optimises power
MPPT controller maximises efficiency.
3. Pump delivers water
Submersible pump pushes water to surface.
4. Water where you need it
To tanks, troughs or irrigation.
