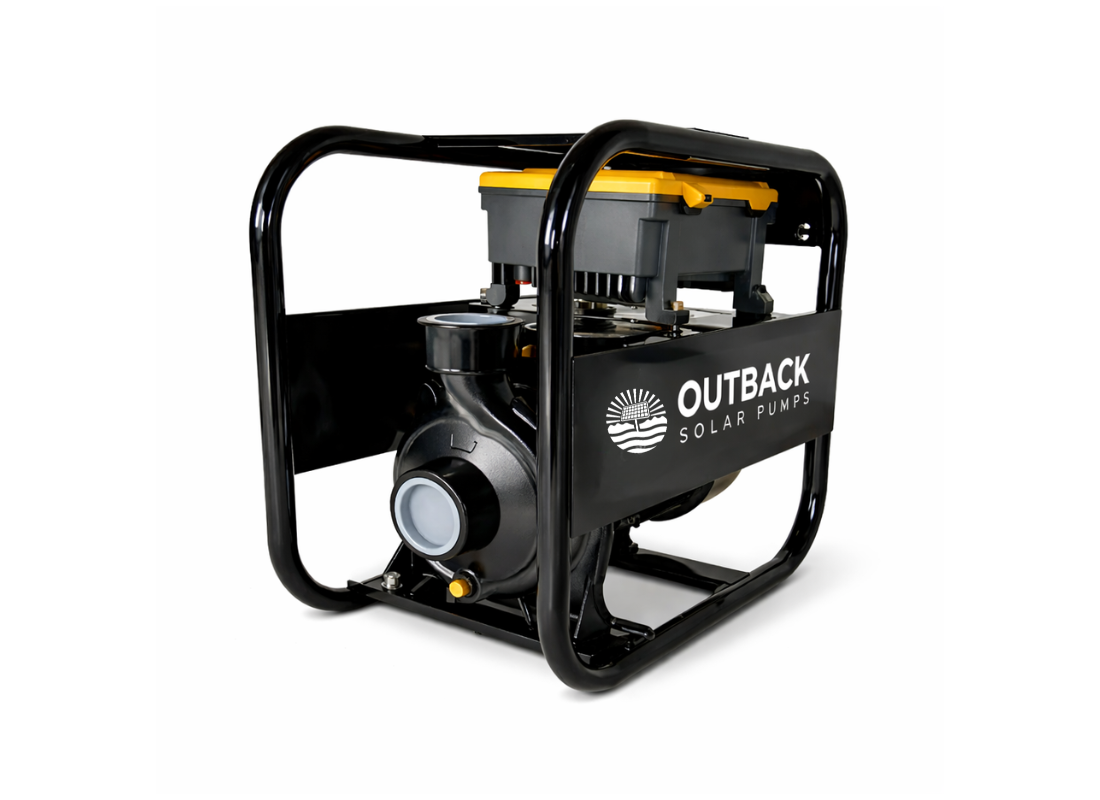

Outback Pathfinder 0.80kW DC Surface Mounted Water Transfer Pump in Frame (Max 37LPM/62m)

The Outback Pathfinder DC Surface-Mounted Water Transfer Pump is a robust, 0.80 kW DC pump designed for efficient water transfer between tanks, dams, and storage systems. Supplied pre-mounted in a protective steel frame, the Pathfinder offers a compact, serviceable solution where a submersible pump is not required.

Delivering up to 37 LPM with a maximum head of 62 metres, the Pathfinder is ideal for solar-powered and off-grid applications requiring reliable surface-level pumping. Its framed design allows for easy ground, pad, or skid mounting while protecting the pump and motor during operation and transport.

Surface transfer pumps play a vital role in off-grid water systems where flexibility and serviceability matter. The Outback Pathfinder delivers reliable performance, easy installation, and solar-optimised efficiency — without the complexity of submersible systems.

Its framed construction and DC compatibility make it a dependable choice for both permanent installations and mobile or seasonal setups.

Designed for Transfer, Not Submersion

Unlike bore pumps, surface-mounted pumps are used where water is accessible at ground level or via suction lines. The Pathfinder is optimised for:

• Tank-to-tank transfer
• Dam-to-tank pumping
• Boosting pressure in surface water irrigation systems

Its DC motor allows direct integration with solar pump controllers, making it an excellent choice for off-grid water movement applications.

Technical Overview

• Model: Pathfinder
• Pump Type: Surface-mounted water transfer pump
• Motor Power: 0.80 kW (DC)
• Maximum Flow: 37 LPM

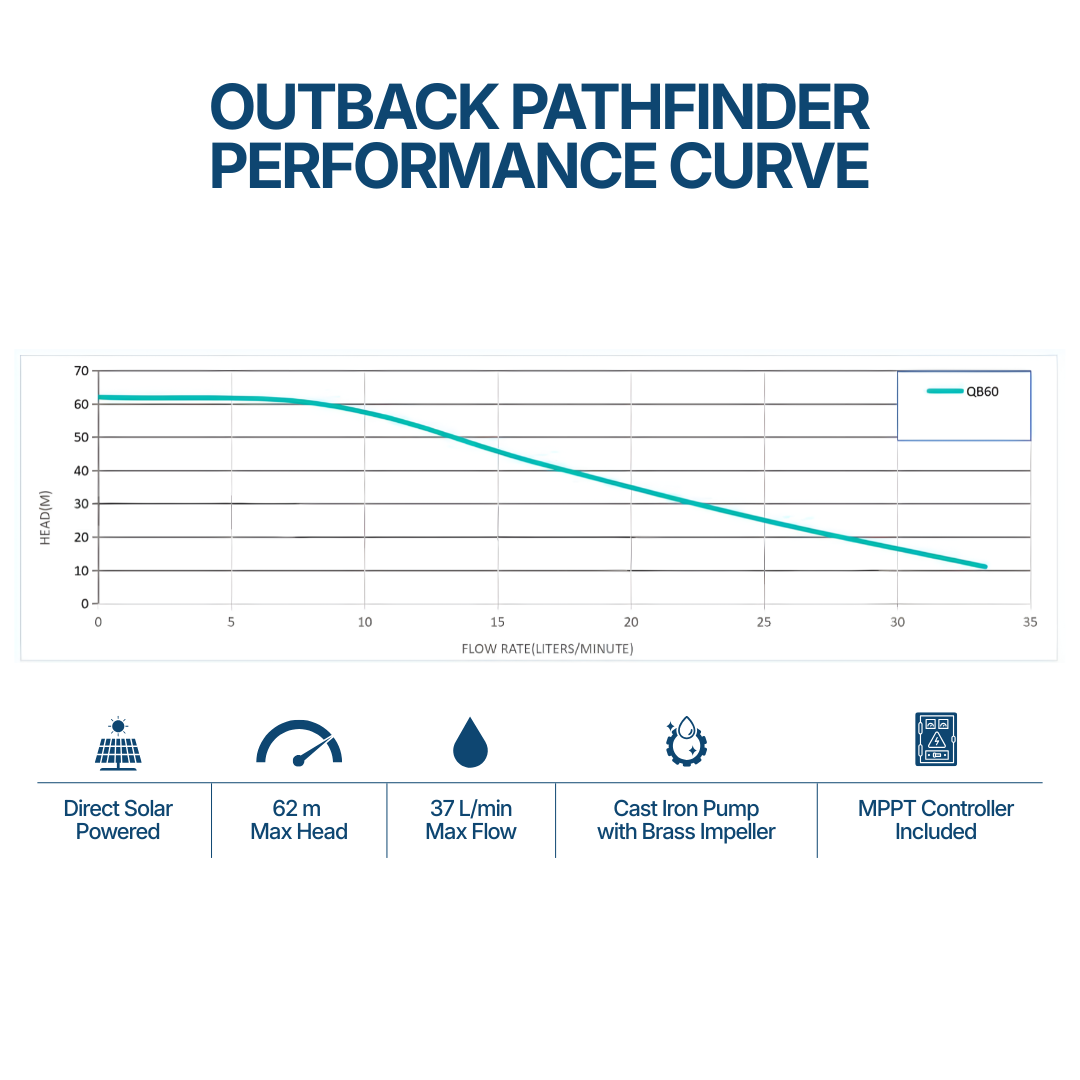

• Maximum Head: 62 m
• Mounting: Frame-mounted (ground / pad / skid)
• Application: Tank transfer, dam transfer, water boosting
• Supply: Pump assembly only (controller, panels & accessories sold separately)

Key Benefits

• 0.80 kW DC motor optimised for solar operation
• Surface-mounted design – no submersion required
• Protective steel frame for durability and stability
• High transfer efficiency for tanks and storage systems
• Compact and serviceable layout
• Ideal spare or standalone transfer pump

Applications

• Tank-to-tank water transfer
• Dam or surface water pumping
• Pressure boosting in surface systems
• Light irrigation systems
• Solar-powered off-grid installations
• Spare pump for critical water transfer systems
