Outback Outrider 2-80 3" 1000W Submersible Solar Bore Pump Complete Kit
A higher-flow AC/DC solar bore pump kit for faster tank filling, stock watering and general rural supply. Delivers up to 34 L/min with a maximum head of 80m.
Including GST. Free shipping on orders Australia-Wide*
Australia Wide
AustralianOwned
Support
Warranty
We design solar pumping systems to suit your needs.
Get a free quote ›Powerful. Reliable. Built for the Outback.

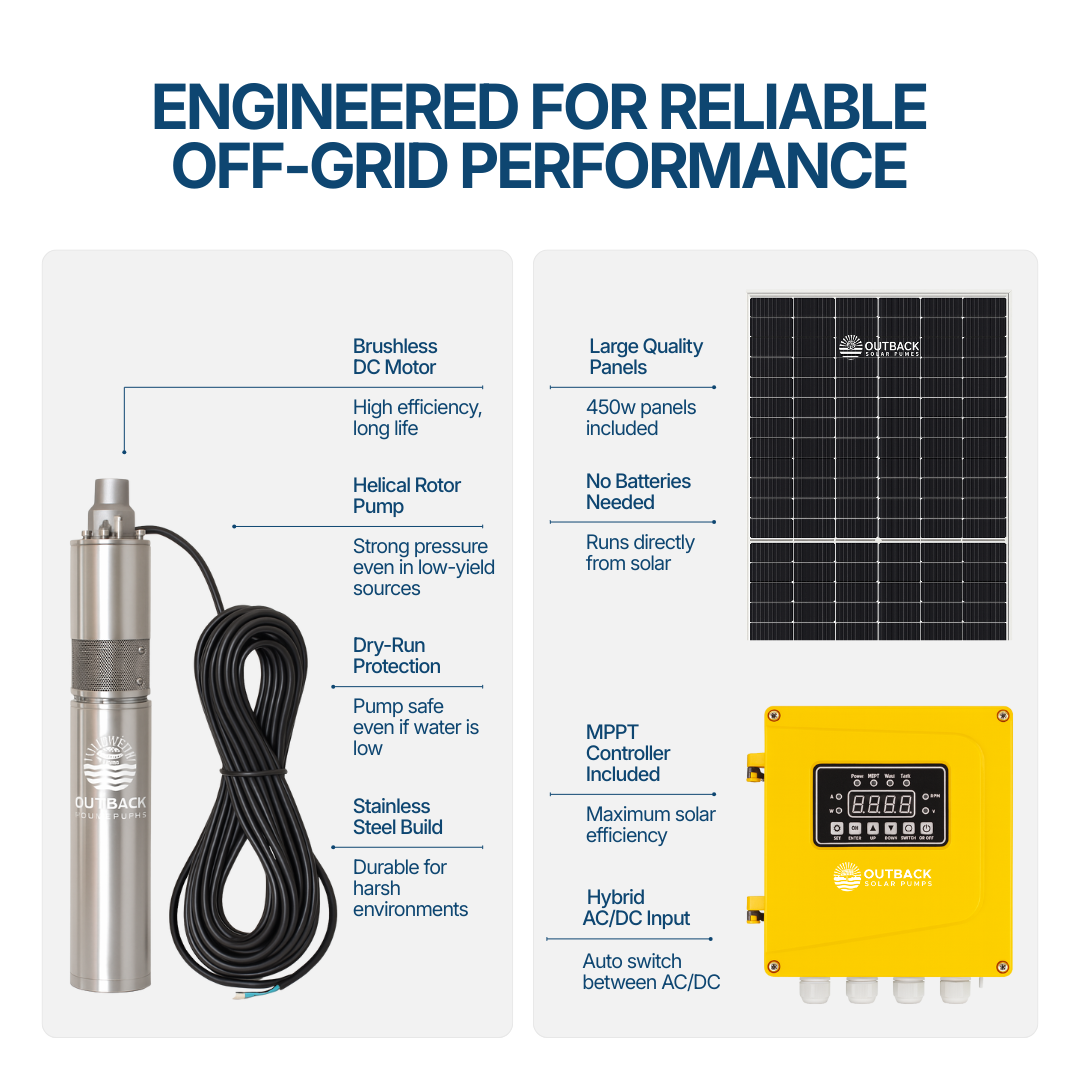

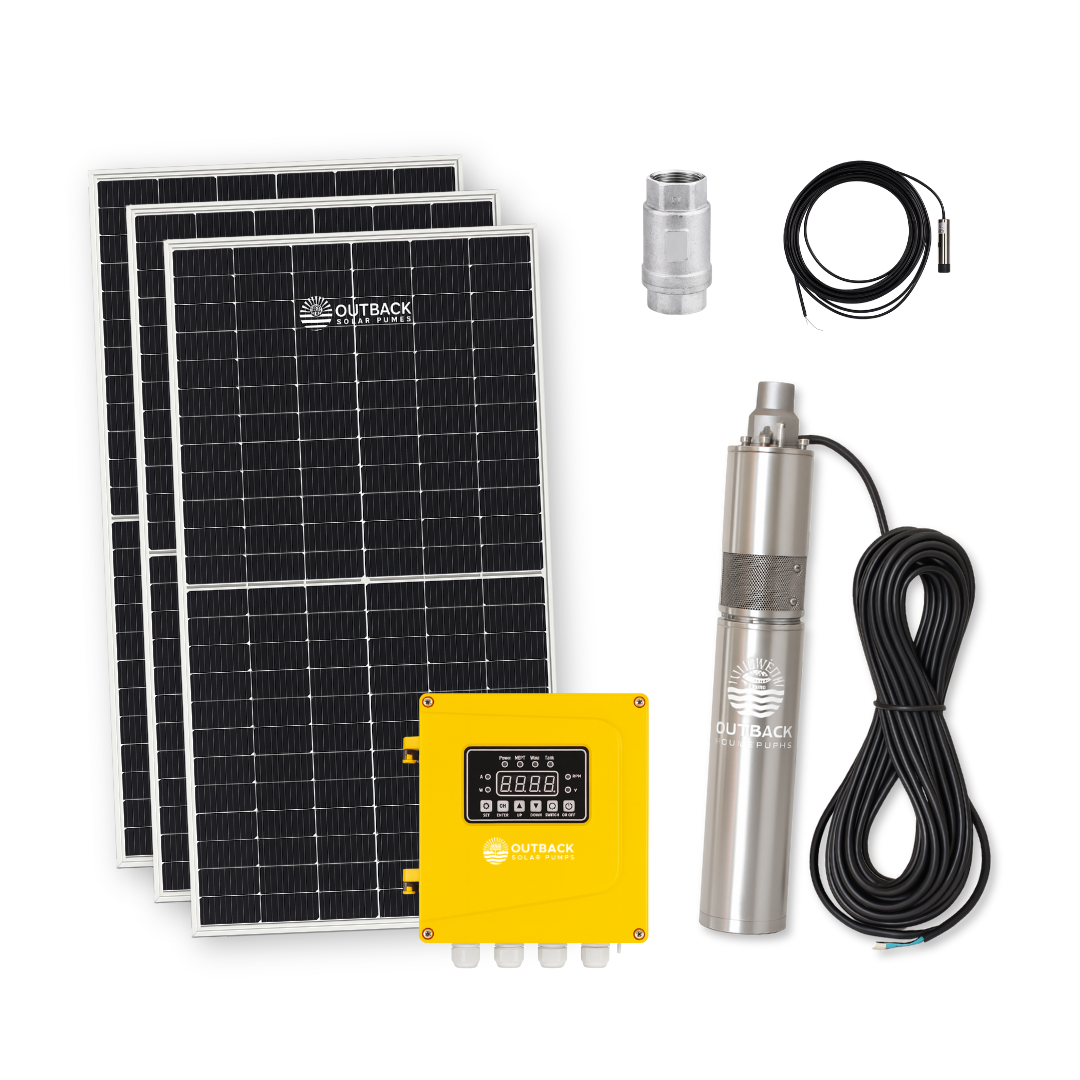

The Outback Outrider AC/DC Solar Bore Pump Kit is designed for properties needing stronger daily water output from medium-depth bores. Powered by 3 × 450W solar panels and an intelligent AC/DC MPPT controller, the Outrider operates efficiently from solar power with the flexibility of AC or generator backup when required.
Featuring a durable 3" stainless steel submersible pump, brushless motor and helical rotor design, the Outrider delivers up to 34 L/min and 80m maximum head. Supplied with 40m submersible pump cable, dry-run protection and plug-and-play solar connections, it is a dependable solar bore pump solution for stock watering, tank filling, light irrigation and general rural water supply.

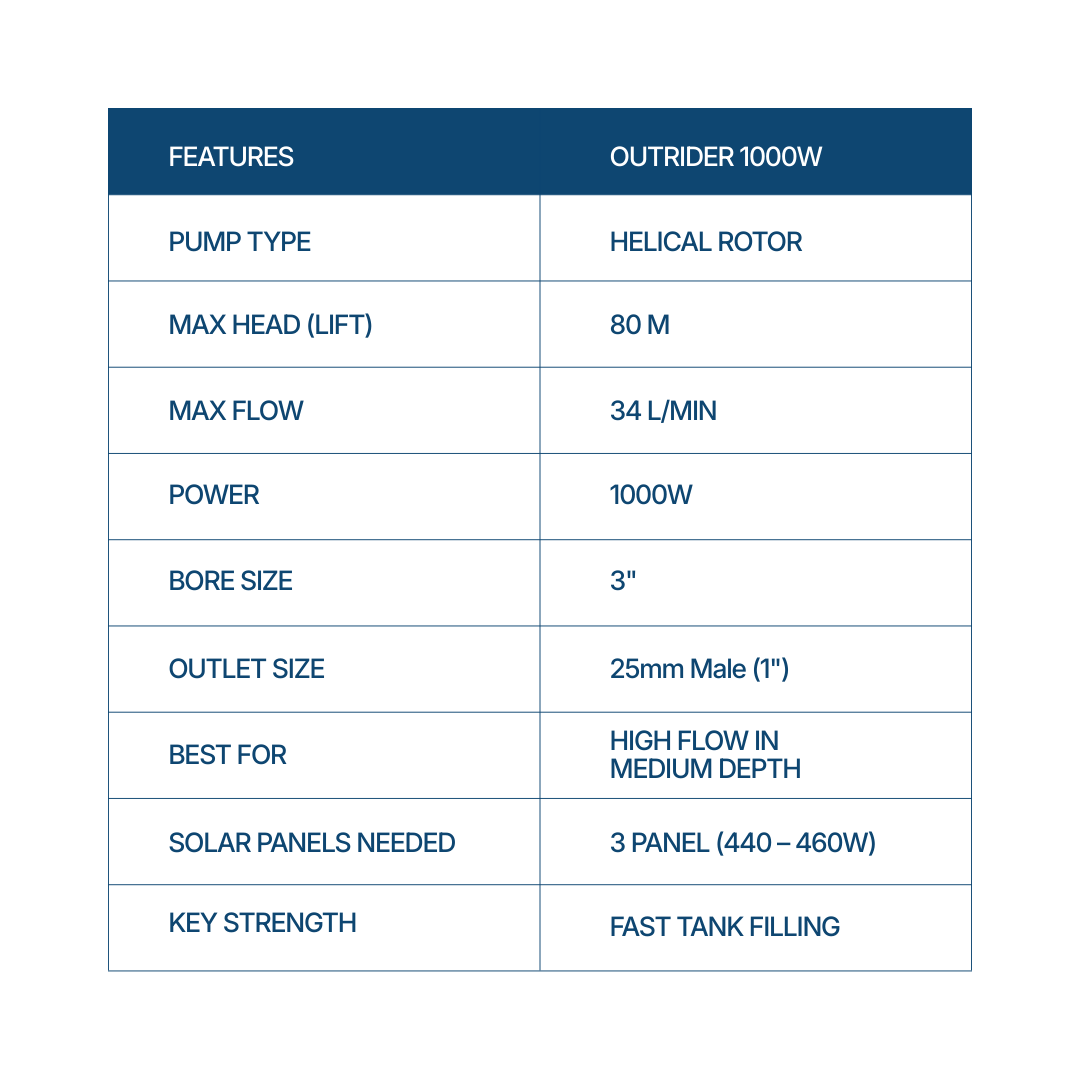

| Max Flow | 34 L/Min (2,100 L/Hr) |
| Max Head | 80m |
| Pump Diameter | 75mm (3") |
| Motor | Brushless DC |
| Voltage | DC Solar Input Via MPPT Controller (Three-Panel Series System) |
| Outlet Size | 25mm Male (1″ BSP) |
| Cable Length | 40m Submersible Pump Cable (Included) |
| Brand | Outback Solar Pumps |
|---|---|
| SKU | OSP-OUT-D02 |
| Max Flow | 34 L/Min (2,100 L/Hr) |
| Max Head | 80m |
| Pump Diameter | 75mm (3") |
| Motor | Brushless DC |
| Voltage | DC Solar Input Via MPPT Controller (Three-Panel Series System) |
| Outlet Size | 25mm Male (1″ BSP) |
| Cable Length | 40m Submersible Pump Cable (Included) |
| Controller Type | AC/DC Hybrid MPPT Solar Pump Controller (Brushless DC) |
| Pump Type | Screw Rotor / Helical Rotor |
| Warranty | 2-Year Pump And Controller Warranty & 30-Year Linear Solar Panel Performance Guarantee |
| Recommended Panels | 3 x 450W |

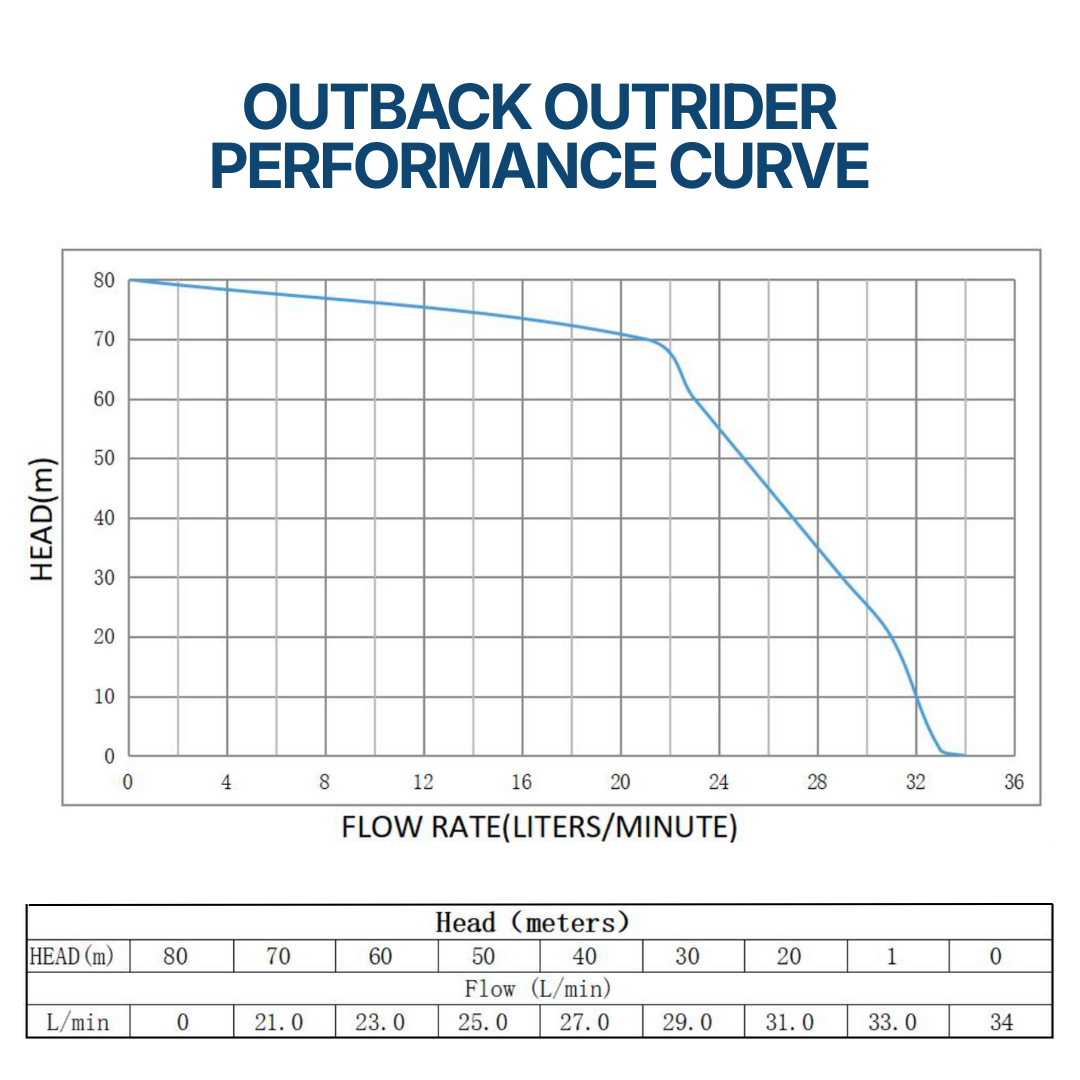

| Working Flow | 22–25LPM @ 50m |
1 × MPPT AC/DC Solar Pump Controller
3 × 450W Solar Panels
1 × 40m Submersible Motor Cable & Plug
1 x 40m Submersible Nylon Safety Cable
1 × 40m Stainless Steel Bore Low-Level Probe
2 x 3m MC4 Waterproof Electrical Connectors
1 x 25mm 304ss Non-Return Check Valve
1 x Quick Start Guide And Installation Manual
Downloads coming soon.

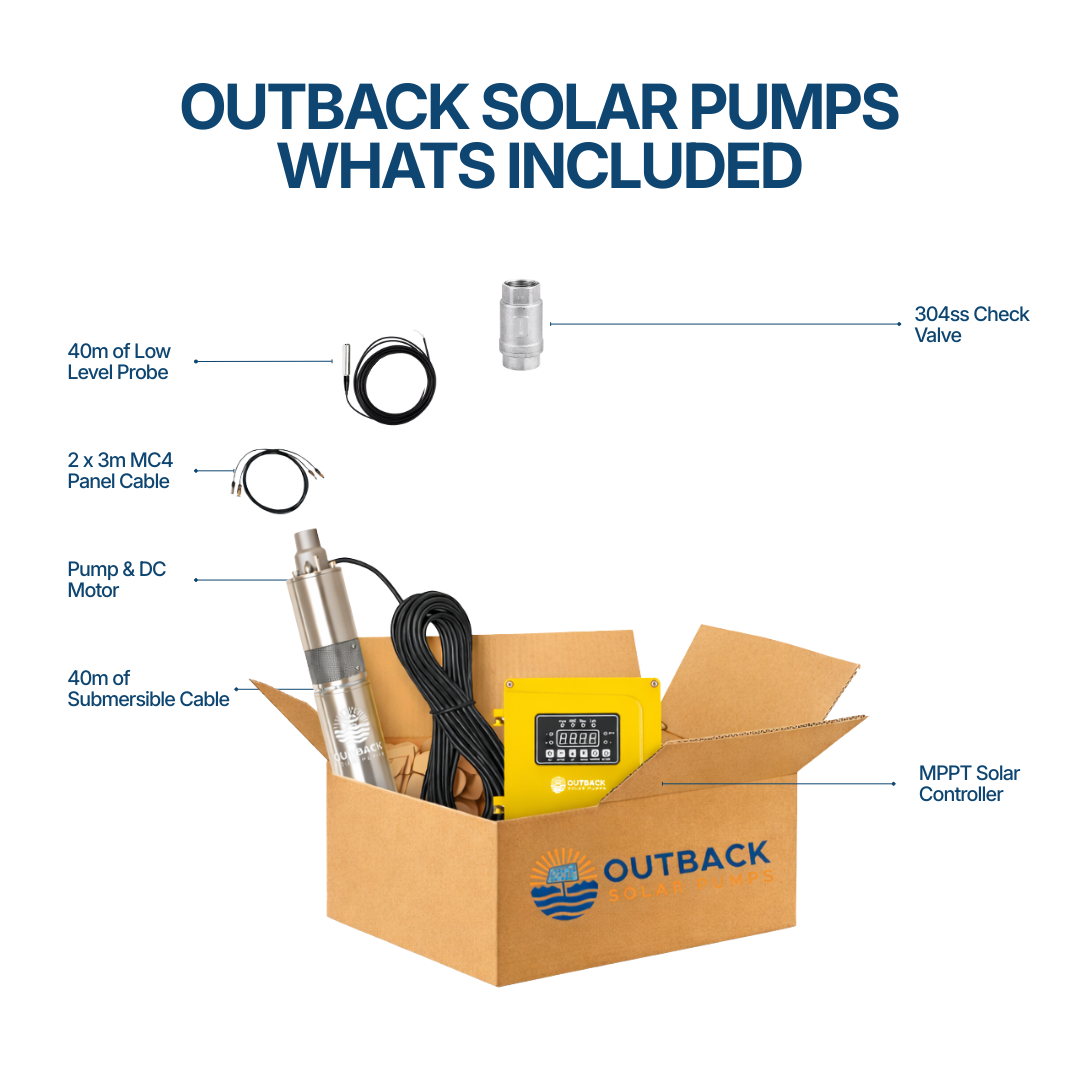

What's Included in the Kit
Everything you need to get pumping — supplied in one complete package.
Bore Pump
1000W bore pump and motor with 40m cable
Solar Pump Controller
MPPT AC or DC controller with built-in protection
3 x 450W Solar Panel
Bi-Facial solar panels with 3m MC4 Cable
25mm Check Valve
Screws onto pump discharge
40m Run-Dry Probe
Stainless steel low-level dry-run probe
Documentation
Quick Start Guide and Installation Manual
Watch the Kit Unboxing
See exactly what arrives in the box and how the kit is presented.
- Packaging overview
- What's included
- How the kit is packed
- First impressions
Product Downloads
- Download Data Sheet
- Download Product Brochure
- Download What's Included Guide
- Download Quick Start Guide
Ideal For
-
Tank Filling Efficiently fills tanks and storage systems.
-
Livestock Watering Reliable water supply for livestock and farms.
-
Remote Water Transfer Move water where you need it, off-grid.
Frequently Asked Questions
Can the Outrider run from both solar and backup power?
Yes. The Outrider includes an AC/DC MPPT controller and is supplied with 3 × 450W solar panels for direct solar operation. Compatible AC or generator backup can also be used when required, providing additional pumping flexibility for rural properties.
Is the Outrider suitable for stock watering and tank filling?
Yes. The Outrider is designed for properties requiring stronger daily water output for stock watering, tank filling and general rural water supply. Its higher maximum flow makes it a practical choice where tanks need to be replenished faster than with the lower-flow bore pump models.
When should I choose the Outrider instead of the Nomad?
Choose the Outrider when increased water output is more important than maximum lift. The Outrider delivers up to 34 L/min with a maximum head of 80m, while the Nomad delivers up to 26 L/min with a higher maximum head of 110m. Outrider is better suited to faster tank filling from medium-head bores.
Recommended Accessories
Complete your setup with these popular add-ons.
Outback TankMate 30m 304 Stainless Steel Probe Tank Float Switch
Controls tank water levels and automatically starts/stops the solar pump electrically. ...
$99.00
Outback AutoMate Solar Constant Pressure Headworks Kit
Creates automatic constant-pressure water supply from your solar pump system. The Outba...
$295.00
Outback Ironbark 3A – Triple Solar Panel Ground Mount Kit
The Outback Ironbark PostMount 3-A is a heavy-duty triple-panel solar ground mounting s...
$1,255.00
Outback Watchman 4G Remote Monitor Water Flow Meter with 0.9W Solar Panel
Know what your water system is doing without driving out to check it. The Outback Watch...
$895.00
Outback TankView 4G Remote Monitor Tank Level Monitor with 0.9W Solar Panel
Know Your Tank Level From Anywhere Outback TankView 4G gives you remote visibility of y...
$950.00
Outback TankLink Wireless Tank Level Float Switch
Wireless tank level monitoring and automatic pump control — configured and ready to con...
$1,295.00
How it Works
1. Sun powers the system
Solar panels generate energy.
2. Controller optimises power
MPPT controller maximises efficiency.
3. Pump delivers water
Submersible pump pushes water to surface.
4. Water where you need it
To tanks, troughs or irrigation.
