Outback Nomad 1.5-110 AC/DC Hybrid 3" 1000W Submersible Solar Bore Pump Complete Kit
A high-head AC/DC solar bore pump kit for deeper bores requiring increased daily water output. Delivers up to 26 L/min with a maximum head of 110m.
Including GST. Free shipping on orders Australia-Wide*
Australia Wide
Owned
Support
Warranty
We design solar pumping systems to suit your needs.
Get a free quote ›Powerful. Reliable. Built for the Outback.
The Outback Nomad AC/DC Solar Bore Pump Kit is built for properties requiring dependable water delivery from deeper bores with increased daily water demand. Powered by 3 × 450W solar panels and an intelligent AC/DC MPPT controller, the Nomad runs efficiently from solar power with the flexibility of AC or generator backup when required.

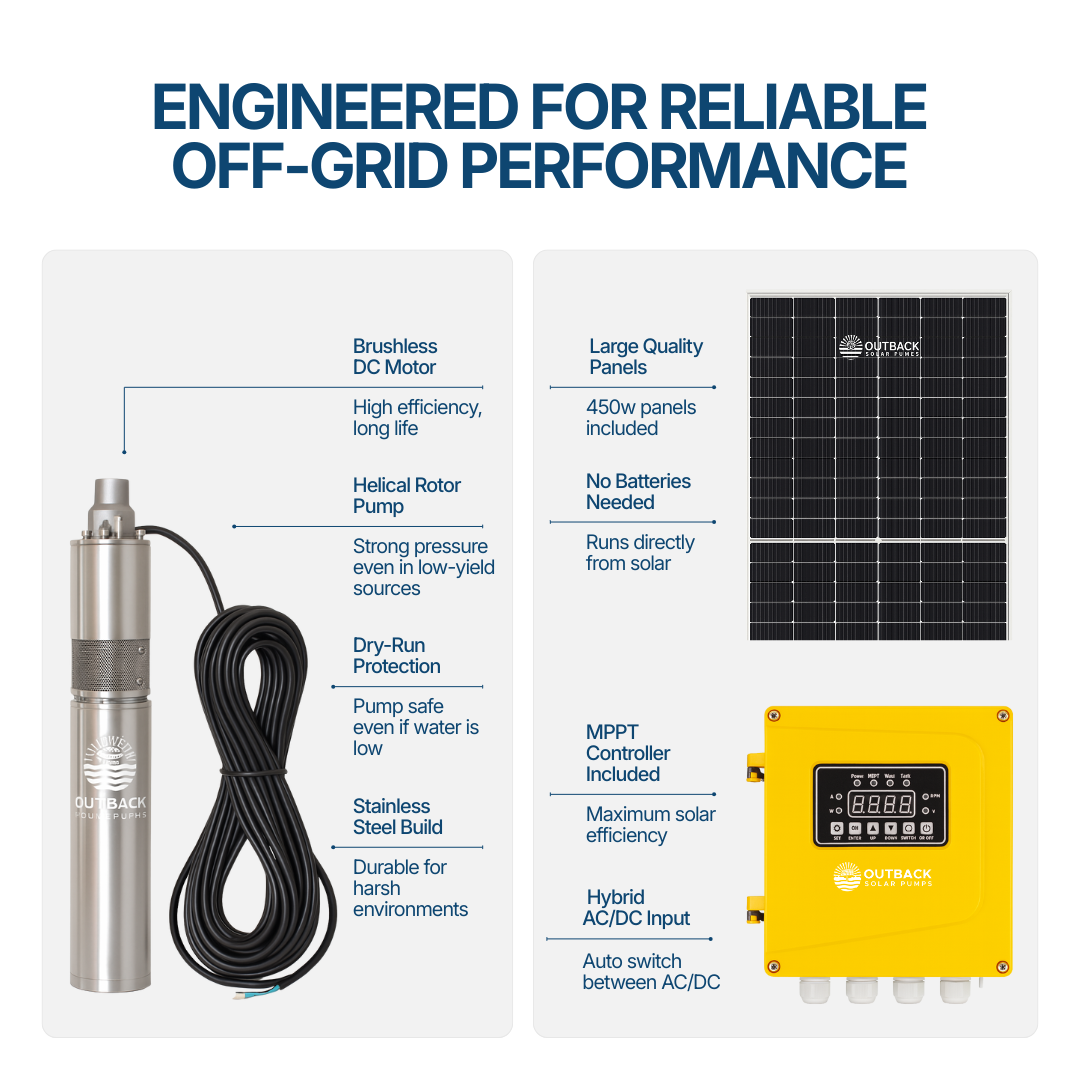

Featuring a durable 3" stainless steel submersible pump, brushless motor and helical rotor design, the Nomad delivers up to 26 L/min and 110m maximum head. Supplied with 40m submersible pump cable, dry-run protection and plug-and-play solar connections, it is a high-performance solar bore pump system for stock watering, tank filling, light irrigation and remote rural water supply.

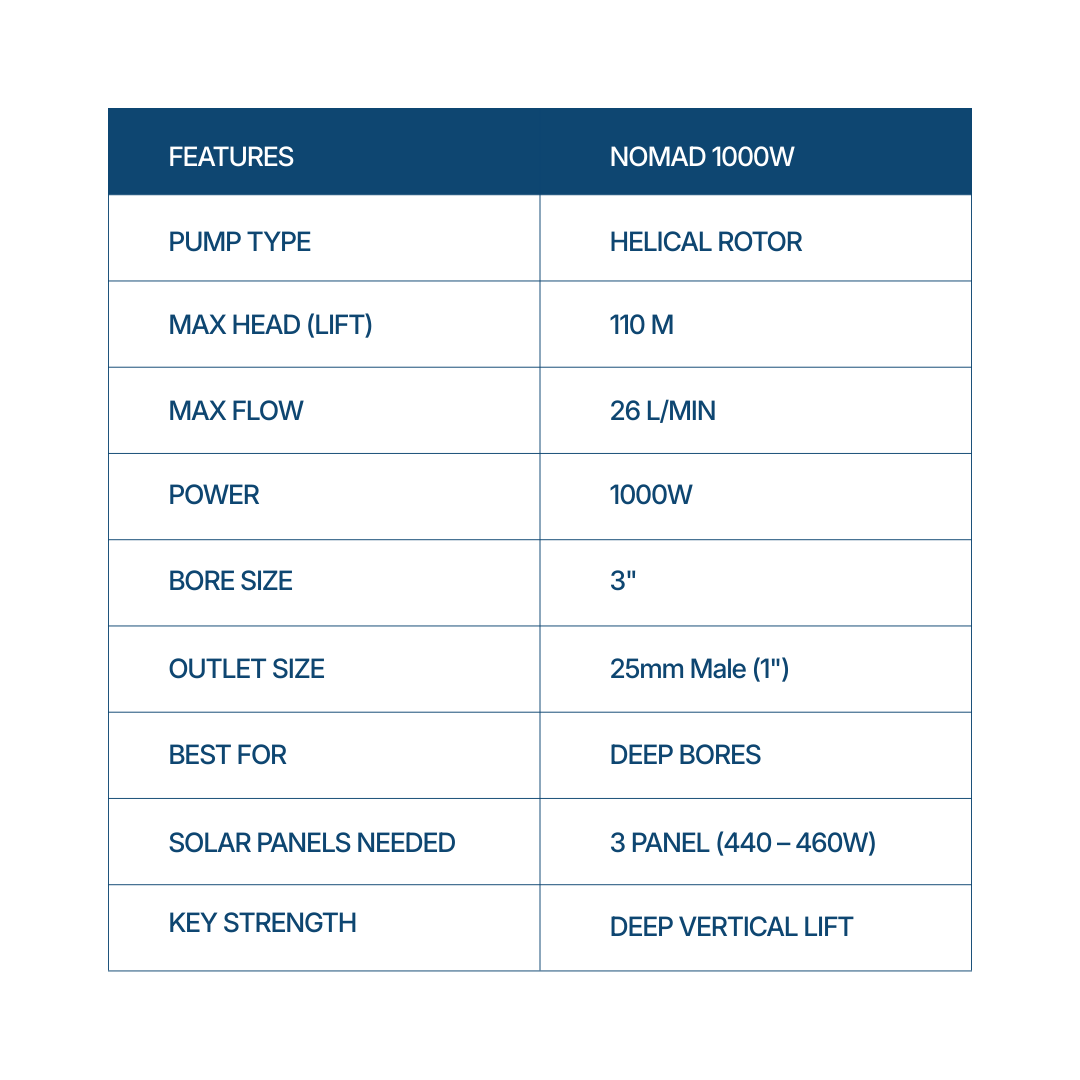

| Max Flow | 26 L/Min (1,600 L/Hr) |
| Max Head | 110m |
| Pump Diameter | 75mm (3") |
| Motor | Brushless DC |
| Voltage | DC Solar Input Via MPPT Controller (Three-Panel Series System) |
| Outlet Size | 25mm Male (1″ BSP) |
| Cable Length | 40m Submersible Pump Cable (Included) |
| Brand | Outback Solar Pumps |
|---|---|
| SKU | OSP-3NOM-26-110-3P |
| Max Flow | 26 L/Min (1,600 L/Hr) |
| Max Head | 110m |
| Pump Diameter | 75mm (3") |
| Motor | Brushless DC |
| Voltage | DC Solar Input Via MPPT Controller (Three-Panel Series System) |
| Outlet Size | 25mm Male (1″ BSP) |
| Cable Length | 40m Submersible Pump Cable (Included) |
| Controller Type | AC/DC Hybrid MPPT Solar Pump Controller (Brushless DC) |
| Pump Type | Screw Rotor / Helical Rotor |
| Warranty | 2-Year Pump And Controller Warranty & 30-Year Linear Solar Panel Performance Guarantee |
| Recommended Panels | 3 x 450W |
| Working Flow | 16–18LPM @ 85m |

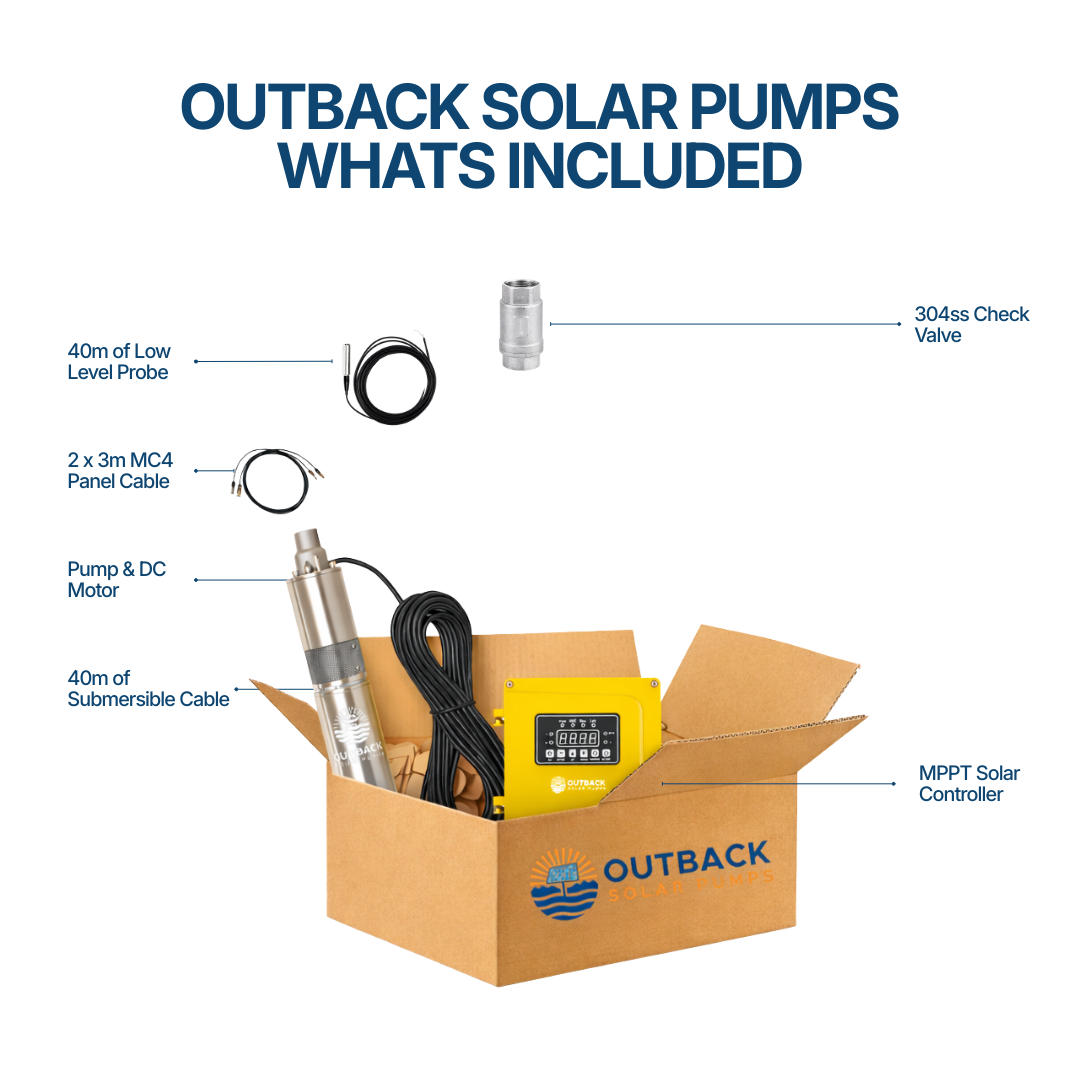

1 × MPPT AC/DC Solar Pump Controller
3 × 450W Solar Panels
1 × 40m Submersible Motor Cable & Plug
1 x 40m Submersible Nylon Safety Cable
1 × 40m Stainless Steel Bore Low-Level Probe
2 x 3m MC4 Waterproof Electrical Connectors
1 x 25mm 304ss Non-Return Check Valve
1 x Quick Start Guide And Installation Manual
Downloads coming soon.
Product Downloads
- OSP Nomad Specifications 2026
- OSP Controller Installation Guide
- OSP Controller Wiring Diagram
- OSP Quick Install Guide
Ideal For
-
Tank Filling Efficiently fills tanks and storage systems.
-
Remote Water Transfer Move water where you need it, off-grid.
-
Livestock Watering Reliable water supply for livestock and farms.
Frequently Asked Questions
What type of property is the Outback Nomad suited to?
The Nomad is designed for rural properties requiring dependable water delivery from deeper bores for stock watering, tank filling, light irrigation and off-grid water supply. Its combination of 110m maximum head and 26 L/min maximum flow provides a strong balance of lift and water output.
Does the Outback Nomad include backup power capability?
Yes. The Nomad is supplied with an AC/DC MPPT controller, allowing it to operate from its supplied solar panels with the option of compatible AC or generator backup when required. This makes it suitable for properties where reliable water access is especially important.
What makes the Nomad different from the Pioneer?
The Nomad provides both greater lift and increased maximum flow. It delivers up to 26 L/min with a maximum head of 110m, compared with the Pioneer’s 18 L/min and 100m maximum head. This makes Nomad a strong choice for deeper bores requiring more daily water supply.
How it Works
1. Sun powers the system
Solar panels generate energy.
2. Controller optimises power
MPPT controller maximises efficiency.
3. Pump delivers water
Submersible pump pushes water to surface.
4. Water where you need it
To tanks, troughs or irrigation.
