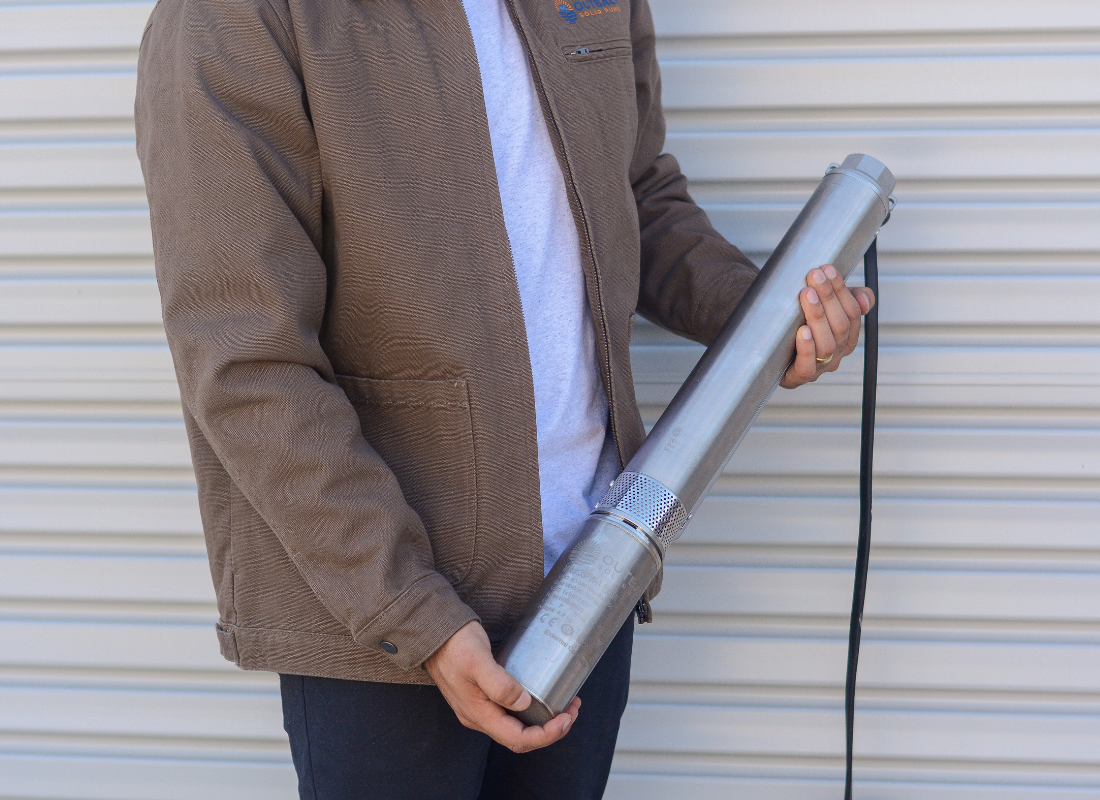

Outback Nomad 3" 1.00kW DC Submersible Helical Rotor Bore Pump & Motor (Max 26LPM/110m)

The Outback Nomad 3" DC Submersible Helical Rotor Pump & Motor is a high-power replacement pump assembly designed for demanding bore conditions requiring both increased lift and higher flow. With a 1.00 kW DC motor, the Nomad delivers a maximum output of 26 LPM and a maximum head of 110 metres, making it the most powerful pump in the Outback 3" helical rotor range.

Supplied as a pump and motor only, the Nomad is ideal as a direct replacement or spare for existing Outback Nomad systems, or for customers upgrading pump capacity within an existing solar setup without purchasing a complete kit.

For deeper bores and higher water demand, the Outback Nomad delivers the power and consistency required to keep systems running reliably. Keeping a spare Nomad pump on hand minimises downtime and ensures fast recovery in critical water supply applications.

Built for high-head efficiency, durability, and solar-optimised performance, the Nomad is the go-to replacement pump for demanding bore conditions.

Designed for High-Demand Solar Bore Applications

The Nomad utilises a helical rotor (progressive cavity) pumping design, allowing it to maintain stable flow at high heads where centrifugal pumps struggle. Its higher power rating provides increased torque, enabling improved performance in deeper bores and higher-pressure applications.

This makes the Nomad well-suited to bores with limited recharge, deeper static water levels, or installations where consistent flow and extended run times are required.

Technical Overview

• Model: Nomad
• Pump Diameter: 3 inch
• Motor Power: 1.00 kW (DC)
• Pump Type: Helical rotor / progressive cavity
• Maximum Flow: 26 LPM
• Maximum Head: 110 m
• Application: Bore pumping, tank filling, water transfer
• Supply: Pump & motor only (controller, panels & accessories sold separately)

Key Benefits

• Complete pump & motor replacement assembly
• High-power 1.00 kW DC motor for demanding applications
• Helical rotor design maintains flow at high lift
• Increased flow rate compared to lower-powered models
• 3" slimline diameter suits narrow bore casings
• Ideal spare pump for remote and critical water systems

Applications

• Replacement pump for existing Outback Nomad systems
• Spare pump for deep or high-demand bore installations
• Low-yield bores requiring higher torque and lift
• Solar DC systems with larger panel arrays
• Remote water supply systems where reliability is critical

Product Download

• PDF Perfomance Brochure
