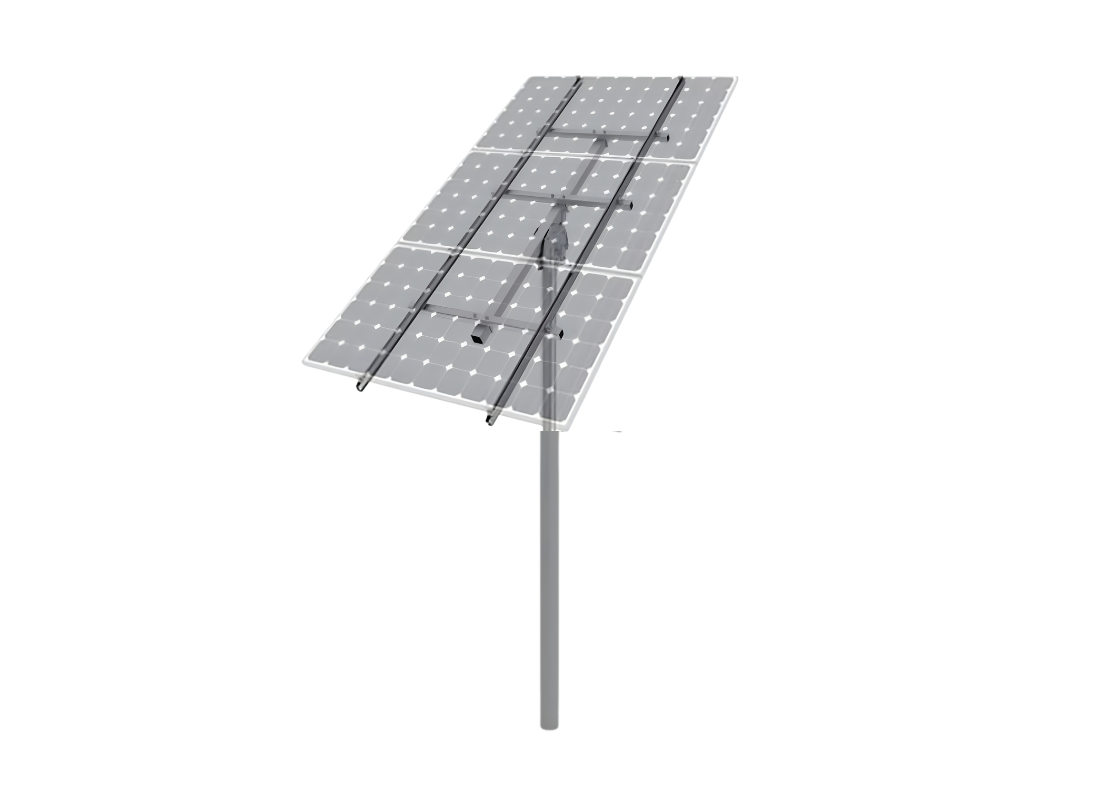

Outback Ironbark PostMount 3-A — Triple Panel Solar Ground Mount Frame Kit
Couldn't load pickup availability
The Outback Ironbark PostMount 3-A is a heavy-duty triple-panel solar ground mounting system designed for higher-output off-grid installations. Engineered specifically to suit the Outback SP450W 450W solar panel range, this robust frame kit provides a secure and stable foundation for larger solar bore pump systems requiring expanded solar capacity.
Built using corrosion-resistant aluminium mounting rails and galvanised steel structural components, the Ironbark 3-A is designed to perform in harsh Australian environments. The adjustable tilt configuration allows optimal panel positioning to maximise solar generation throughout the year, making it ideal for rural, agricultural, and remote property installations.
The 3-A configuration is suited to larger AC/DC Hybrid pump systems such as the Outback Outrider and Trailblazer where three-panel arrays are required for consistent performance and higher daily water output.
WHATS INCLUDED
- PostMount 3-A structural mounting kit
- ECO aluminium mounting rails
- 30mm panel clamps (to suit SP450W panels)
- All required mounting hardware
- Adjustable tilt frame components
*Solar Panels, Concrete footing and ground preparation materials not included.
KEY FEATURES
- Triple panel ground mount system
- Designed for Outback SP450W 450W solar panels
- Corrosion-resistant aluminium and galvanised steel construction
- Adjustable tilt angles for seasonal optimisation
- Suitable for permanent in-ground installation
- Ideal for larger off-grid solar pump systems
INSTALLATION NOTES
- Requires concrete footing (not supplied)
- Professional installation recommended
- Install to local wind region and soil compliance requirements
- Ensure correct embedment depth for structural stability
