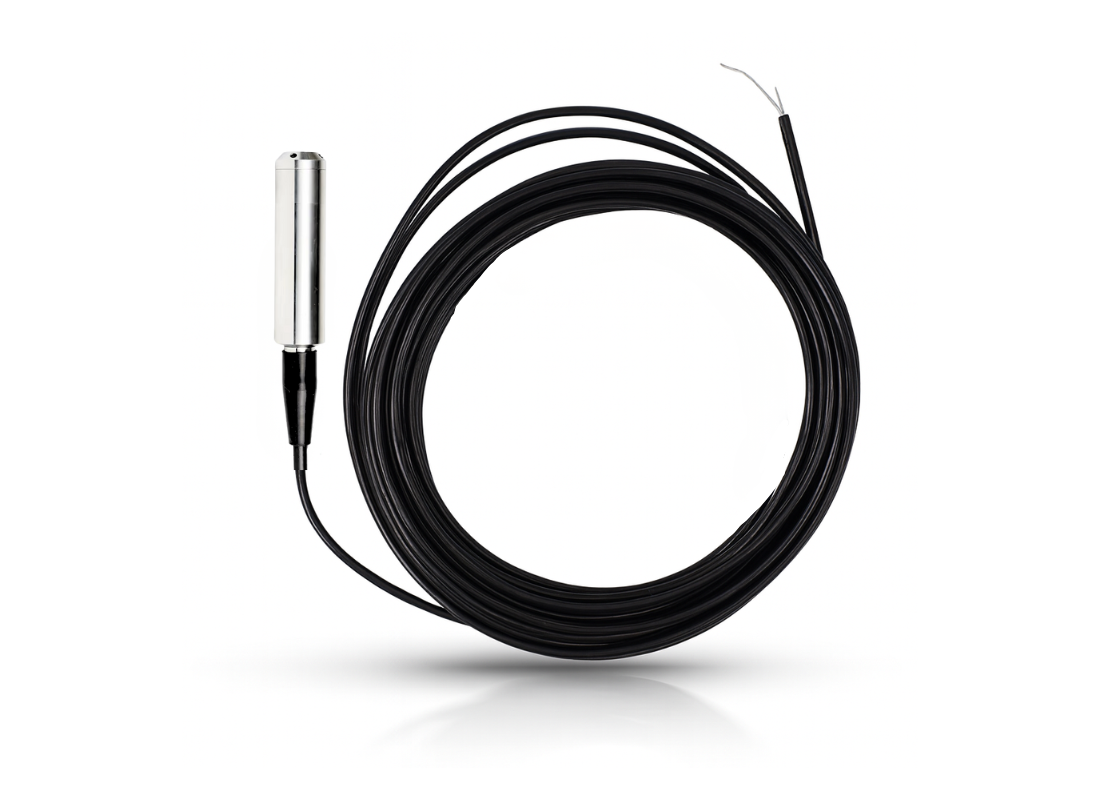

Outback FS0030 304 Stainless Steel Probe Tank Float Switch — 30m Cable
Couldn't load pickup availability
The Outback FS0030 Probe Tank Float Switch is a heavy-duty 304 stainless steel level probe designed to automatically control solar pump operation based on tank or trough water level. Supplied with a 30-metre pre-attached cable, it is ideal for installations where the tank is located a significant distance from the pump or controller.
Unlike mechanical float switches, the FS0030 uses a solid stainless steel probe design, making it highly resistant to UV exposure, livestock damage, algae buildup, and long-term immersion — particularly important in rural and remote environments.
How the Probe Float Switch Works
The FS0030 is installed inside a tank or trough at the desired water level. When the water reaches the probe, the switch signals the controller to stop the pump. As the water level drops, the switch resets and allows pumping to resume.
This simple, proven control method provides reliable automatic filling without pressurising the delivery line, making it an excellent solution for gravity-fed or open outlet systems.
Technical Overview
- Model: FS0030
- Switch Type: Probe-style tank float switch
- Probe Material: 304 stainless steel
- Cable Length: 30 metres (40m available upon request)
- Function: Automatic pump start/stop based on water level
- Application: Tank and trough filling systems
- Compatibility: Solar bore and transfer pump systems
- Max Power: 10W
- VDC: 100V
- Max Current: 1A
- Temperature: -20 to 80C
Key Benefits
- 304 stainless steel probe for corrosion resistance
- 30m cable ideal for long-distance tank installations
- No moving parts – reduced failure risk
- Suitable for tanks and troughs
- Simple, reliable level-based pump control
- Compatible with DC solar pump controllers
Applications
- Solar bore pumps filling distant tanks
- Installations where pressurised systems are not required
- Simple tank or trough fill setups
- Systems where a float valve is not used
- Remote water storage applications
