Outback Digger 1.5-140 AC/DC Hybrid 3" 1200W Submersible Solar Bore Pump Complete Kit
Our highest-head AC/DC solar bore pump kit for deep bores and demanding lift requirements. Delivers up to 26 L/min with a maximum head of 140m.
Including GST. Free shipping on orders Australia-Wide*
Australia Wide
Owned
Support
Warranty
We design solar pumping systems to suit your needs.
Get a free quote ›Powerful. Reliable. Built for the Outback.
The Outback Digger AC/DC Solar Bore Pump Kit is designed for deep bore applications where dependable water delivery is required from greater depths. Powered by 4 × 450W solar panels and an intelligent AC/DC MPPT controller, the Digger operates efficiently from solar power with the flexibility of AC or generator backup when required.
Featuring a durable 3" stainless steel submersible pump, brushless motor and helical rotor design, the Digger delivers up to 26 L/min with a powerful 140m maximum head. Supplied with 80m submersible pump cable, dry-run protection and plug-and-play solar connections, it is a high-head solar bore pump solution for stock watering, tank filling, rural irrigation and demanding off-grid water supply.
| Max Flow | 26 L/Min (1,600 L/Hr) |
| Max Head | 140m |
| Pump Diameter | 75mm (3") |
| Motor | Brushless DC |
| Voltage | DC Solar Input Via MPPT Controller (Four-Panel Series System) |
| Outlet Size | 40mm Female (1 1/2″ BSP) |
| Cable Length | 80m Submersible Pump Cable (Included) |
| Brand | Outback Solar Pumps |
|---|---|
| SKU | OSP-3DIG-26-110-4P |
| Max Flow | 26 L/Min (1,600 L/Hr) |
| Max Head | 140m |
| Pump Diameter | 75mm (3") |
| Motor | Brushless DC |
| Voltage | DC Solar Input Via MPPT Controller (Four-Panel Series System) |
| Outlet Size | 40mm Female (1 1/2″ BSP) |
| Cable Length | 80m Submersible Pump Cable (Included) |
| Controller Type | AC/DC Hybrid MPPT Solar Pump Controller (Brushless DC) |
| Pump Type | Screw Rotor / Helical Rotor |
| Warranty | 2-Year Pump And Controller Warranty & 30-Year Linear Solar Panel Performance Guarantee |
| Recommended Panels | 4 x 450W |
| Working Flow | 12LPM @ 110m |

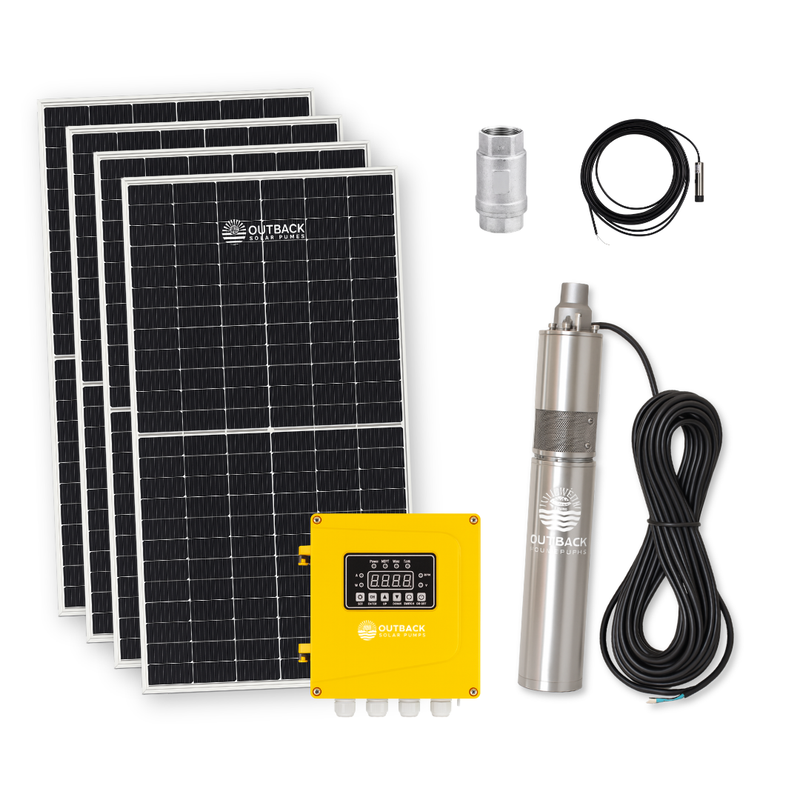

1 × MPPT AC/DC Solar Pump Controller
4 × 450W Solar Panels
1 × 80m Submersible Motor Cable & Plug
1 × 80m Stainless Steel Low-Level Bore Probe
1 × 80m Stainless Steel Safety Cable
2 x 3m MC4 Waterproof Electrical Connectors
1 x 40mm 304ss Check Valve
1 x Quick Start Guide And Installation Manual
Downloads coming soon.
Product Downloads
- OSP Digger Specifications 2026
- OSP Controller Installation Guide
- OSP Controller Wiring Diagram
- OSP Quick Install Guide
Ideal For
-
Remote Water Transfer Move water where you need it, off-grid.
-
Livestock Watering Reliable water supply for livestock and farms.
-
Tank Filling Efficiently fills tanks and storage systems.
Frequently Asked Questions
What is the Outback Digger designed for?
The Digger is the highest-head solar bore pump kit in the Outback range, designed for deep bore applications and demanding lift requirements. It delivers up to 26 L/min with a maximum head of 140m, making it suitable where lower-head pump models cannot provide the required water delivery.
When should I choose the Digger instead of the Nomad?
Choose the Digger when maximum lift is the priority. The Nomad provides a maximum head of 110m, while the Digger extends this to 140m for deeper bore installations or systems requiring substantially greater pumping head.
Why does the Digger come with more solar panels and longer pump cable?
The Digger is designed for deeper, higher-head pumping applications that place greater demand on the system. It is supplied with 4 × 450W solar panels and an 80m pump cable to support higher power requirements and provide additional installation reach for deep bore setups.
How it Works
1. Sun powers the system
Solar panels generate energy.
2. Controller optimises power
MPPT controller maximises efficiency.
3. Pump delivers water
Submersible pump pushes water to surface.
4. Water where you need it
To tanks, troughs or irrigation.
