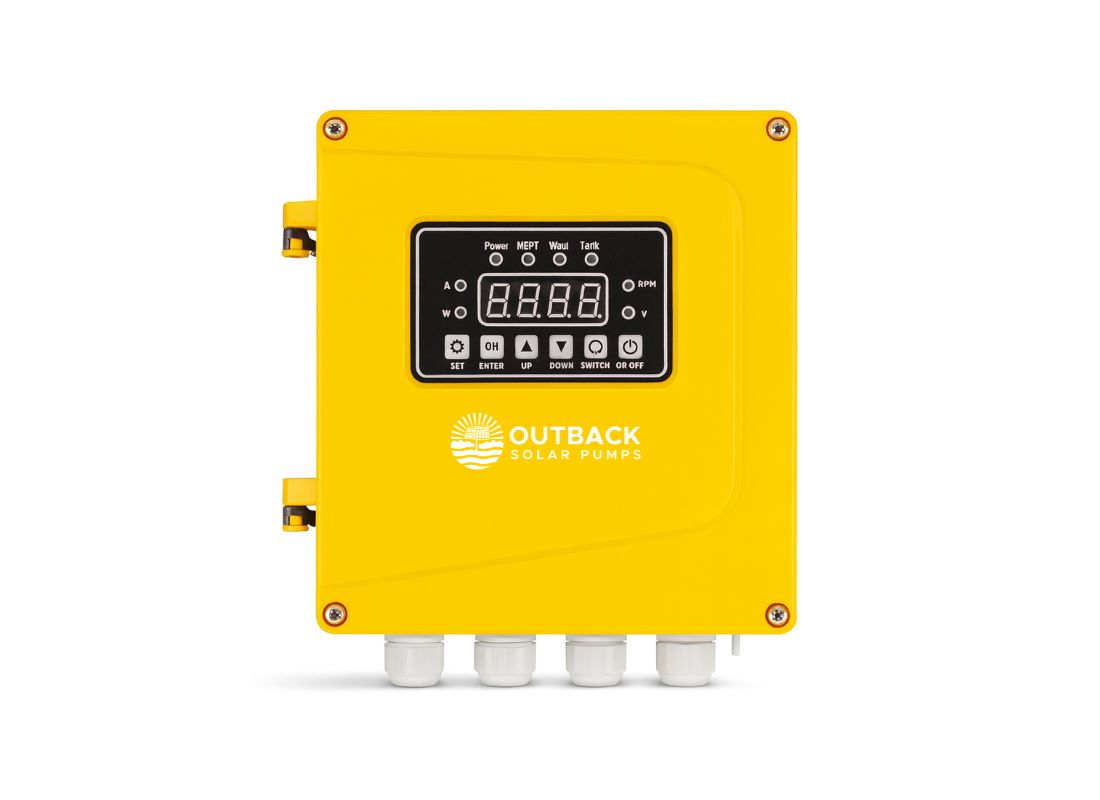

Outback C0600W 40-110V AC/DC Solar Pump Controller in IP65 Enclosure

The Outback C0600W Solar Pump Controller is a high-capacity AC/DC hybrid controller designed to manage solar pump systems operating within a 40–110V input range. Housed in a rugged IP65-rated enclosure, it delivers reliable pump control, intelligent power management, and comprehensive protection in demanding outdoor and remote environments.

Unlike lower-voltage controllers, the C0600W supports higher-voltage solar arrays and AC-assisted operation, making it ideal for larger pump systems, higher power demands, or installations where grid or generator backup may be required.

This controller is supplied as part of selected Outback high-performance pump kits and is also available as a standalone replacement or upgrade.

Hybrid AC/DC Operation Explained

The C0600W is designed to accept power from:

• High-voltage DC solar arrays, and
• AC input sources (grid or generator, where applicable)

This flexibility allows solar pumping systems to:

• Operate efficiently under solar power during the day
• Maintain pumping capability during low solar conditions
• Support higher-powered pumps with stable input control
• The controller automatically manages input conditions to ensure safe, reliable pump operation at all times.

Technical Overview

• Model: C0600W
• Input Voltage Range: 40–110V AC/DC
• System Type: Hybrid solar pump controller
• Enclosure Rating: IP65 (dust-tight & water-resistant)
• Installation: Wall-mounted or frame-mounted
• Application: High-power solar bore and transfer pump systems
• Suites: Outback Pioneer

Built-In Protection Features

• Dry-run protection
• Over-voltage and under-voltage protection
• Over-current protection
• Motor overload protection
• Phase and voltage monitoring (AC input)
• Automatic fault recovery and restart

Applications

• High-power DC solar bore pump systems
• Installations using higher-voltage solar arrays
• Hybrid solar + AC backup water systems
• Remote water supply requiring extended run time
• Replacement or upgrade for existing high-voltage controllers
