Hansen HLEVELLER Dual Action Tank Float Valve for Solar Pumps
Couldn't load pickup availability
Controls tank water levels and automatically starts/stops the solar pump hydraulically.
The Hansen Leveller Valve for Solar Pump Tank Control is a high-performance reservoir and tank valve designed to help protect pumps, reduce unnecessary cycling, and improve water system reliability.
Unlike a standard float valve that opens and closes constantly as the water level changes, the Hansen Leveller Valve allows you to set both a minimum refill level and a maximum shut-off level. This means your tank can drop to a chosen low point before the valve opens, then refill to the desired maximum level before shutting off again.
For solar pumping systems, this is especially useful. It allows your pump to refill the tank in longer, more efficient run cycles instead of constantly switching on and off. This helps reduce wear, minimise water hammer, and support a more reliable off-grid water supply.
The Hansen Leveller Valve is suitable for rural, agricultural, irrigation, horticulture, domestic and reservoir applications. It is designed for both clean and dirty water conditions, works across low and high pressure systems, and features a soft open and close action to help reduce valve bounce and water hammer.
Key Features
- Official Hansen Leveller Valve
- Ideal for solar pump tank control
- Opens at the selected minimum water level
- Closes at the selected maximum water level
- Helps reduce pump cycling
- Supports longer pump run cycles
- Helps protect pumps from excessive stop/start operation
- Soft open and close action to reduce water hammer
- Suitable for clean and dirty water conditions
- Works with low and high pressure systems from 0.2 bar to 12 bar
- High flow performance up to 1275 LPM at 12 bar
- Supplied with 32mm, 40mm and 50mm adaptors
- Includes valve body, leveller control, weighted HiViz ball, blue float and cord

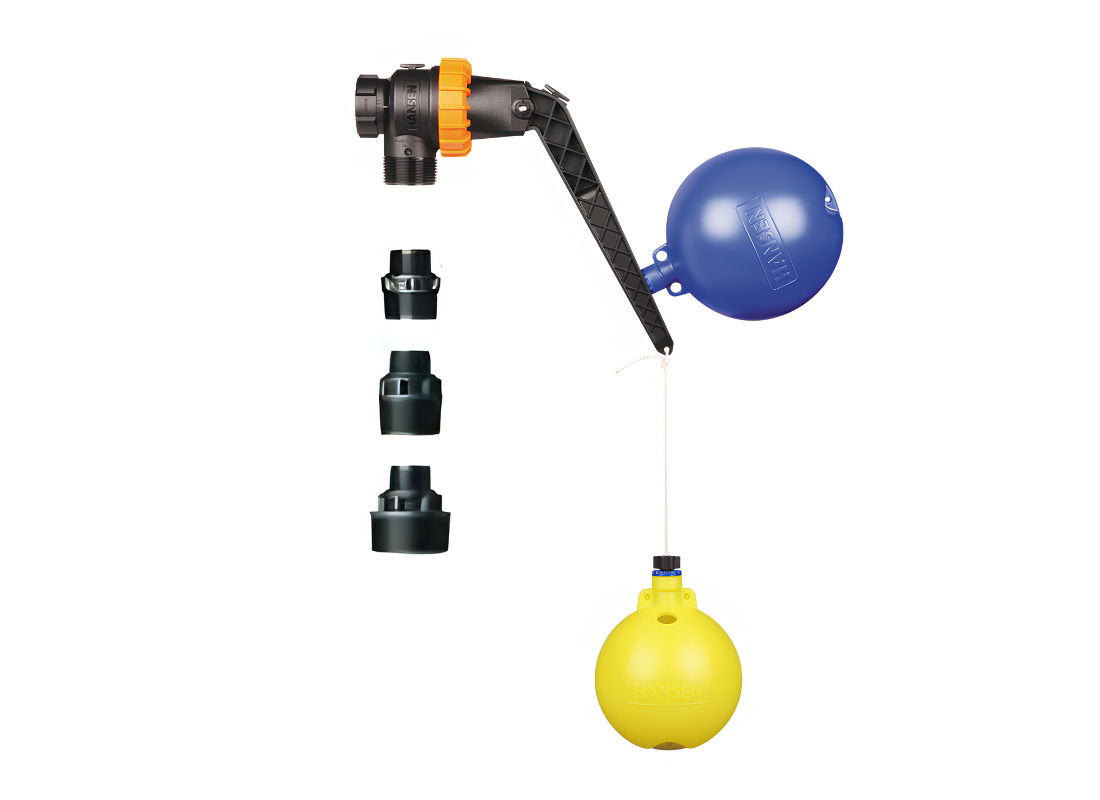

What’s Included
- Hansen Leveller Valve body
- 32mm, 40mm and 50mm threaded adaptors
- Leveller control arm
- 115mm weighted HiViz ball
- 140mm blue threaded float
- 2.4m cord
