Outback Joey 1-60 DC 3" 300W Submersible Solar Bore Pump Starter Kit
Our budget-friendly solar bore pump kit for low-yield bores, small tanks and basic stock watering. Delivers up to 18 L/min with a maximum head of 60m.
Including GST. Free shipping on orders Australia-Wide*
Australia Wide
AustralianOwned
Support
Warranty
We design solar pumping systems to suit your needs.
Get a free quote ›Powerful. Reliable. Built for the Outback.
The Outback Joey DC Solar Bore Pump Kit is an affordable entry-level solution for low-yield bores, small tanks and basic stock watering applications. Powered by 1 × 450W solar panel (optional) and an intelligent DC MPPT controller, the Joey delivers reliable water supply directly from solar power without batteries, fuel or mains electricity.
Featuring a compact 3" stainless steel submersible pump, brushless DC motor and helical rotor design, the Joey delivers up to 18 L/min with a 60m maximum head. Supplied with a 40m low-level bore probe, dry-run protection, heat-shrink cable joint kit and plug-and-play solar connections, it is a practical solar bore pump system for small-scale rural and off-grid water supply.
| Max Flow | 18 L/Min (1,100 L/Hr) |
| Max Head | 60m |
| Pump Diameter | 75mm (3") |
| Motor | Brushless DC |
| Voltage | DC Solar Input Via MPPT Controller |
| Outlet Size | 25mm Male (1″ BSP) |
| Cable Length | 1.5m Pump Cable + Heatshrink Kit |
| Brand | Outback Solar Pumps |
|---|---|
| SKU | OSP-JOE-02 |
| Max Flow | 18 L/Min (1,100 L/Hr) |
| Max Head | 60m |
| Pump Diameter | 75mm (3") |
| Motor | Brushless DC |
| Voltage | DC Solar Input Via MPPT Controller |
| Outlet Size | 25mm Male (1″ BSP) |
| Cable Length | 1.5m Pump Cable + Heatshrink Kit |
| Controller Type | DC MPPT Solar Pump Controller |
| Pump Type | Screw Rotor / Helical Rotor |
| Recommended Panels | 1 x 450W |
| Working Flow | 7–8LPM @ 45m |
1 × MPPT DC Solar Pump Controller
1 × 450W Solar Panels (optional)
1 × 1.5m Submersible Motor Cable
1 x Cable Heatshrink Joint Kit
1 x 40m Submersible Nylon Safety Cable
1 × 40m Stainless Steel Bore Low-Level Probe
2 x 3m MC4 Waterproof Electrical Connectors
1 x 25mm 304ss Non-Return Check Valve
1 x Quick Start Guide And Installation Manual
Downloads coming soon.

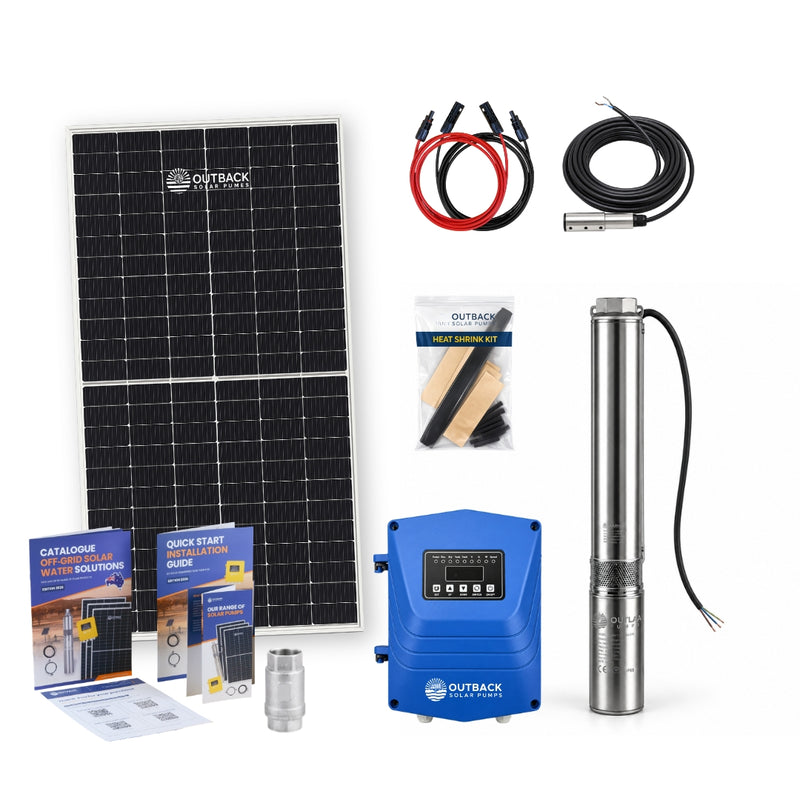

What's Included in the Kit
Everything included in your Joey kit, with the solar panel available as an optional package upgrade.
Submersible Pump
3" 300W screw rotor pump & motor with 1.5m cable
Solar Pump Controller
MPPT DC controller with built-in protection
1 x 450W Solar Panel
Included with Solar Panel kit only
Heatshrink Joint Kit
For waterproof motor cable connection
40m Bore Probe
Stainless steel low-level dry-run probe
Documentation
Quick Start Guide & Installation Manual
Watch the Kit Unboxing
See exactly what arrives in the box and how the kit is presented.
- Packaging overview
- What's included
- How the kit is packed
- First impressions
Product Downloads
- OSP Joey Specifications 2026
- OSP Controller Installation Guide
- OSP Controller Wiring Diagram
- OSP Quick Install Guide
Ideal For
-
Remote Water Transfer Move water where you need it, off-grid.
-
Livestock Watering Reliable water supply for livestock and farms.
-
Tank Filling Efficiently fills tanks and storage systems.
Frequently Asked Questions
Can I run the Joey directly from solar panels?
Yes. The Joey is a DC solar bore pump kit designed to operate directly from its supplied 450W solar panel through the MPPT controller. It does not require batteries, an inverter or mains electricity, making it a practical option for simple off-grid installations.
What is the difference between the Joey and the Scout?
The Joey is the most budget-friendly solar bore pump kit in the Outback range, delivering up to 18 L/min with a maximum head of 60m. The Scout is the next step up, offering the same maximum flow with additional lift up to 70m and a complete pre-wired 40m pump cable setup.
Is the Outback Joey suitable for low-yield bores?
Yes. The Joey is designed as an affordable entry-level option for low-yield bores and smaller rural water supply requirements. Its helical rotor pump design delivers steady water flow at lower volumes, making it suitable for small tanks, basic stock watering and simple off-grid applications.
Recommended Accessories
Complete your setup with these popular add-ons.
Outback TankMate 304 Stainless Steel Probe Tank Float Switch — 30m Cable
Controls tank water levels and automatically starts/stops the solar pump electrically. ...
$99.00
Outback AutoMate Solar 25mm Constant Pressure Headworks Kit
Creates automatic constant-pressure water supply from your solar pump system. The Outba...
$295.00
Outback Ironbark 1A – Single Solar Panel Ground Mount Kit
The Outback Ironbark PostMount 1-A is a complete single-panel solar ground mounting sys...
$595.00
How it Works
1. Sun powers the system
Solar panels generate energy.
2. Controller optimises power
MPPT controller maximises efficiency.
3. Pump delivers water
Submersible pump pushes water to surface.
4. Water where you need it
To tanks, troughs or irrigation.
