Outback Digger 1.5-140 3" 1200W Submersible Solar Bore Pump Complete Kit
Our highest-head AC/DC solar bore pump kit for deep bores and demanding lift requirements. Delivers up to 26 L/min with a maximum head of 140m.
Including GST. Free shipping on orders Australia-Wide*
Australia Wide
AustralianOwned
Support
Warranty
We design solar pumping systems to suit your needs.
Get a free quote ›Powerful. Reliable. Built for the Outback.
The Outback Digger AC/DC Solar Bore Pump Kit is designed for deep bore applications where dependable water delivery is required from greater depths. Powered by 4 × 450W solar panels and an intelligent AC/DC MPPT controller, the Digger operates efficiently from solar power with the flexibility of AC or generator backup when required.
Featuring a durable 3" stainless steel submersible pump, brushless motor and helical rotor design, the Digger delivers up to 26 L/min with a powerful 140m maximum head. Supplied with 80m submersible pump cable, dry-run protection and plug-and-play solar connections, it is a high-head solar bore pump solution for stock watering, tank filling, rural irrigation and demanding off-grid water supply.
| Max Flow | 26 L/Min (1,600 L/Hr) |
| Max Head | 140m |
| Pump Diameter | 75mm (3") |
| Motor | Brushless DC |
| Voltage | DC Solar Input Via MPPT Controller (Four-Panel Series System) |
| Outlet Size | 25mm Male (1″ BSP) |
| Cable Length | 80m Submersible Pump Cable (Included) |
| Brand | Outback Solar Pumps |
|---|---|
| SKU | OSP-DIG-D02 |
| Max Flow | 26 L/Min (1,600 L/Hr) |
| Max Head | 140m |
| Pump Diameter | 75mm (3") |
| Motor | Brushless DC |
| Voltage | DC Solar Input Via MPPT Controller (Four-Panel Series System) |
| Outlet Size | 25mm Male (1″ BSP) |
| Cable Length | 80m Submersible Pump Cable (Included) |
| Controller Type | AC/DC Hybrid MPPT Solar Pump Controller (Brushless DC) |
| Pump Type | Screw Rotor / Helical Rotor |
| Warranty | 2-Year Pump And Controller Warranty & 30-Year Linear Solar Panel Performance Guarantee |
| Recommended Panels | 4 x 450W |
| Working Flow | 12LPM @ 110m |
1 × MPPT AC or AC/DC Solar Pump Controller
4 × 450W Solar Panels
1 × 80m Submersible Motor Cable & Plug
1 × 80m Stainless Steel Low-Level Bore Probe
1 × 80m Stainless Steel Safety Cable
2 x 3m MC4 Waterproof Electrical Connectors
1 x 25mm 304ss Check Valve
1 x Quick Start Guide And Installation Manual
Downloads coming soon.

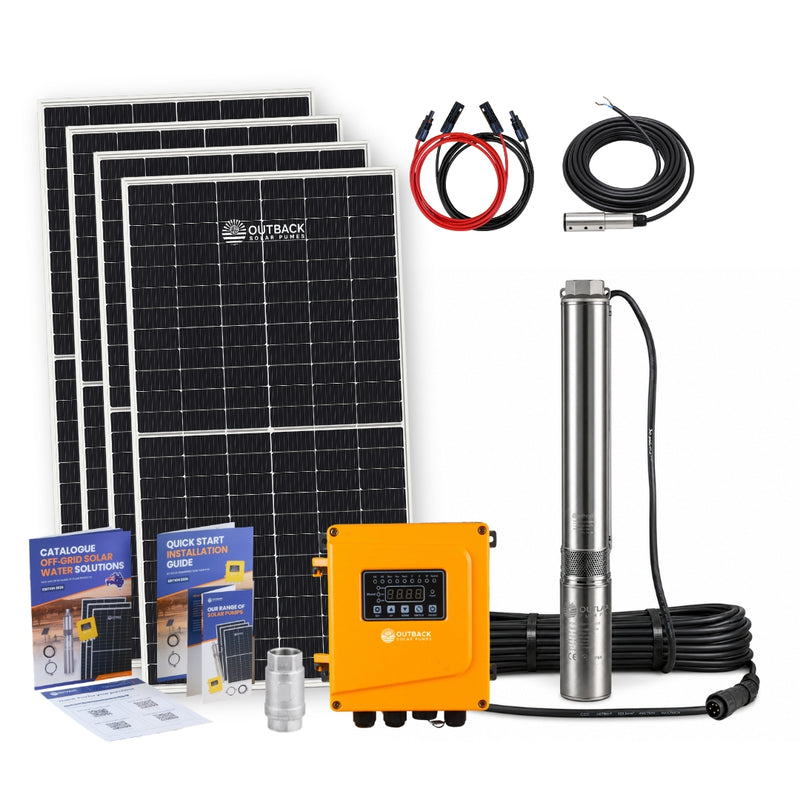

What's Included in the Kit
Everything you need to get pumping — supplied in one complete package.
Bore Pump
1200W bore pump and motor with 80m cable
Solar Pump Controller
MPPT AC or DC controller with built-in protection
4 x 450W Solar Panel
Bi-Facial solar panels with 3m MC4 Cable
25mm Check Valve
Screws onto pump discharge
80m Run-Dry Probe
Stainless steel low-level dry-run probe
Documentation
Quick Start Guide and Installation Manual
Watch the Kit Unboxing
See exactly what arrives in the box and how the kit is presented.
- Packaging overview
- What's included
- How the kit is packed
- First impressions
Product Downloads
- Download Data Sheet
- Download Product Brochure
- Download What's Included Guide
- Download Quick Start Guide
Ideal For
-
Remote Water Transfer Move water where you need it, off-grid.
-
Livestock Watering Reliable water supply for livestock and farms.
-
Tank Filling Efficiently fills tanks and storage systems.
Frequently Asked Questions
What is the Outback Digger designed for?
The Digger is the highest-head solar bore pump kit in the Outback range, designed for deep bore applications and demanding lift requirements. It delivers up to 26 L/min with a maximum head of 140m, making it suitable where lower-head pump models cannot provide the required water delivery.
When should I choose the Digger instead of the Nomad?
Choose the Digger when maximum lift is the priority. The Nomad provides a maximum head of 110m, while the Digger extends this to 140m for deeper bore installations or systems requiring substantially greater pumping head.
Why does the Digger come with more solar panels and longer pump cable?
The Digger is designed for deeper, higher-head pumping applications that place greater demand on the system. It is supplied with 4 × 450W solar panels and an 80m pump cable to support higher power requirements and provide additional installation reach for deep bore setups.
Recommended Accessories
Complete your setup with these popular add-ons.
Outback TankMate 30m 304 Stainless Steel Probe Tank Float Switch
Controls tank water levels and automatically starts/stops the solar pump electrically. ...
$99.00
Outback AutoMate Solar Constant Pressure Headworks Kit
Creates automatic constant-pressure water supply from your solar pump system. The Outba...
$295.00
Outback Ironbark 4A – Quad Solar Panel Ground Mount Kit
The Outback Ironbark PostMount 4-A is a heavy-duty triple-panel solar ground mounting s...
$1,495.00
Outback Watchman 4G Remote Monitor Water Flow Meter with 0.9W Solar Panel
Know what your water system is doing without driving out to check it. The Outback Watch...
$895.00
Outback TankView 4G Remote Monitor Tank Level Monitor with 0.9W Solar Panel
Know Your Tank Level From Anywhere Outback TankView 4G gives you remote visibility of y...
$950.00
Outback TankLink Wireless Tank Level Float Switch
Wireless tank level monitoring and automatic pump control — configured and ready to con...
$1,295.00
How it Works
1. Sun powers the system
Solar panels generate energy.
2. Controller optimises power
MPPT controller maximises efficiency.
3. Pump delivers water
Submersible pump pushes water to surface.
4. Water where you need it
To tanks, troughs or irrigation.
