If you have ever watched a generator refuse to start when a tank is low and stock are waiting at the trough, you already know why an off grid water pump system matters. On a remote block, water is not a nice-to-have. It has to move every day, with as little fuss, fuel and maintenance as possible.
That is why more landholders are moving away from diesel-driven pumping and patchwork setups. A properly matched system can lift from a bore, transfer from a dam, fill header tanks and supply troughs without relying on mains power. The key is not just buying a pump. It is making sure the whole system is balanced for your site, your water source and the amount of water you need across the day.
What an off grid water pump system actually includes

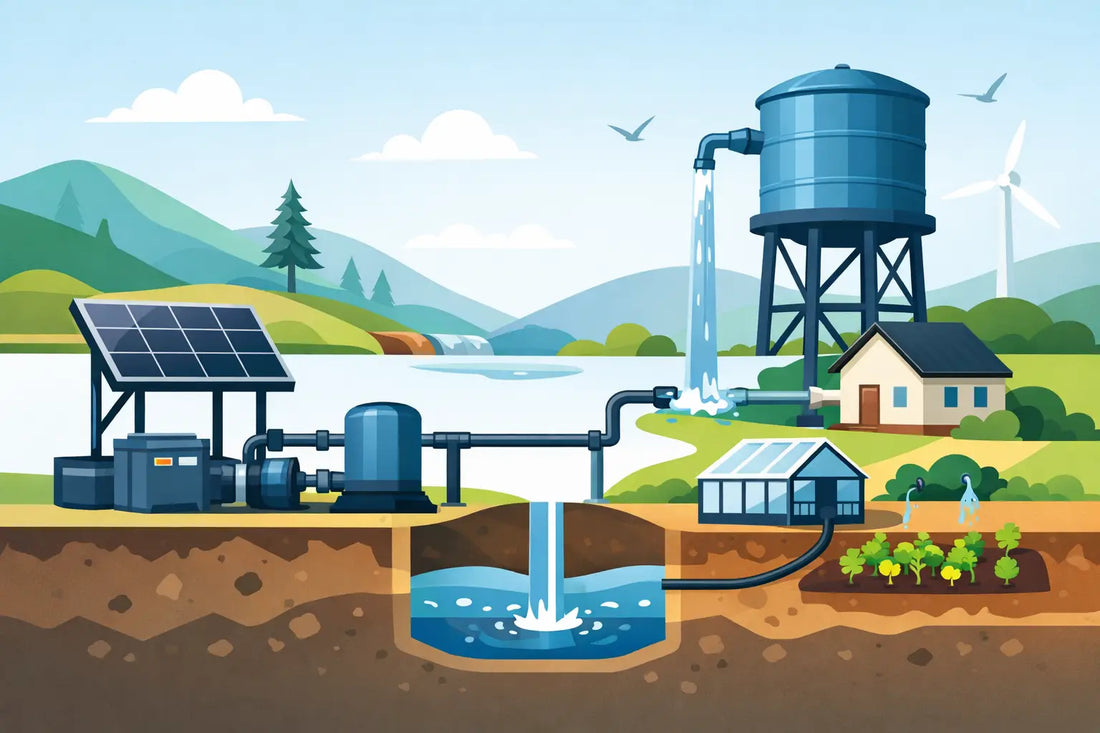

At its simplest, an off grid water pump system uses independent power - usually solar - to move water where it needs to go. In real-world terms, that usually means a pump, controller, solar panels, mounting hardware, cabling, pipework and storage.
The storage side is often overlooked. In off-grid pumping, tanks do a lot of the heavy lifting. Rather than trying to run a pump like a household pressure system all night and day, many rural setups pump into storage while the sun is available, then gravity-feed or pressure-feed from the tank later. That approach reduces battery dependence, cuts complexity and gives you a buffer when weather turns ordinary.
There is no one-size-fits-all arrangement. A bore pump lifting water 80 metres vertically is a very different job from a surface transfer pump shifting dam water a few hundred metres to a turkey nest. Both are off-grid systems, but the pump type, panel size and control strategy will be different.
Why solar is often the best fit
For remote properties, solar pumping makes sense because the demand is steady and the power source is free once the system is installed. Livestock still need water during the day. Tanks still need filling. Most agricultural pumping tasks are predictable enough that a daylight-driven setup works extremely well.
The big advantage over diesel is not only fuel cost. It is also reliability and logistics. You are not carting fuel, servicing engines, changing oil or heading out to deal with a motor that has sat too long between runs. Fewer moving parts usually means fewer headaches.
That said, solar is not magic. If you need high-pressure, on-demand water at all hours, or very large transfer volumes in short windows, the design has to be more careful. Sometimes that means bigger storage. Sometimes it means a hybrid arrangement. The best system is the one that matches the job, not the one with the flashiest spec sheet.
Sizing an off grid water pump system properly
This is where most pumping problems start. If the system is undersized, water supply becomes unreliable. If it is oversized, you spend more than you need to.
The first figure to get clear on is daily water demand. For stock, household use, irrigation or transfer, work out how many litres you need across an average day, then allow sensible margin for hotter periods and future expansion. Underestimating demand is common, especially when extra troughs or another tank get added later.
Next comes total head. This is not just bore depth. It includes static water level, drawdown, elevation gain to the tank, friction losses in pipe and any pressure requirements at the outlet. A pump lifting from 40 metres down the hole to a tank on a rise can be doing far more work than the raw bore depth suggests.
Then there is flow rate. Some jobs need a slow, steady fill over the day. Others need stronger transfer performance in shorter windows. High flow generally means more power demand, so there is always a trade-off between volume, lift and available solar input.
Panel array size matters as much as pump choice. The pump can only do what the available solar power allows. In harsh Australian conditions, panel placement, tilt, shading and seasonal sun hours all affect output. A well-sized pump with too little panel capacity is still a poor system.
Choosing the right pump for the water source
A bore usually calls for a submersible solar pump, especially where water levels are deep or the source is narrow and stable. These pumps sit below the water line and push upward, which is generally more efficient than trying to suck water from the surface. For bores, build quality matters because retrieval is not something you want to do often.
For dams, creeks or tank-to-tank transfer, surface pumps can be a good option if suction limits and installation conditions are suitable. They are easier to access for service, but they are also more exposed to dust, weather and site damage. If the suction lift is too high or the run is too long, a submersible transfer pump may be the better answer.
Water quality also counts. Sand, iron, sediment and mineral content all affect pump life. A system that looks fine on paper can wear quickly if the pump internals are not suited to the water. This is one of those areas where cheap gear often becomes expensive gear.
The role of controllers, protection and storage
A good controller is not just an add-on. It manages the pump’s operation based on solar input and protects the motor from poor running conditions. Features such as dry-run protection, low water cut-out and tank level inputs help prevent avoidable failures.
In isolated locations, protection features are worth having. A pump that shuts itself down because the bore level has dropped is far better than one that keeps running dry until it cooks itself. The same goes for surge handling and voltage management.
Storage tanks are what make many off-grid systems practical. Instead of chasing constant pressure 24 hours a day, the system stores water when solar energy is available. That stored water becomes your reliability buffer. In most rural applications, extra storage is cheaper and simpler than building a highly complex power system.
Common mistakes that cost time and money
The biggest mistake is buying by horsepower or headline flow alone. Those numbers mean very little without the full picture of head, pipe length and daily demand. Two pumps with similar marketing claims can perform very differently once installed.
Another common issue is undersized cable or pipework. Voltage drop and friction loss can quietly rob system performance. The pump might be fine, but the supporting gear is choking the result.
There is also a tendency to ignore maintenance access. Even tough gear needs occasional inspection. If the controller is mounted where it cops full weather, or the panel frame is awkward to clean and service, small issues become bigger ones.
And then there is future growth. If you think you might add troughs, expand irrigation or increase stock numbers, it is worth saying so up front. Designing with a bit of room can save replacing half the system later.
What a reliable system looks like in practice
A reliable setup is usually not the most complicated one. It is the one where the pump curve, solar array, controller, cable, pipe size and tank capacity all work together. Each part supports the job instead of forcing another part to compensate.
For a bore supplying livestock water, that may mean a submersible helical rotor pump, matched solar array, proper dry-run protection and enough tank storage for several days of demand. For a transfer job, it may mean a surface or submersible pump sized for the distance, a simple float-controlled operation and durable mounting built for heat and dust.
This is where complete, balanced kits can make life easier. Rather than piecing together parts and hoping they behave as expected, a matched package removes much of the guesswork. That is particularly useful for DIY owners who are happy to install gear themselves but want confidence that the system has been properly matched.
When off-grid pumping is worth it
If your current setup depends on diesel, a generator, long extension runs or regular babysitting, off-grid pumping is usually worth a serious look. The economics improve further when the site is remote, access is awkward or the pump runs regularly through the year.
It may not suit every single job. Very high-demand irrigation or round-the-clock pressure systems can need a different design approach. But for bores, troughs, tank filling and rural water transfer, solar-based off-grid systems are often the most sensible long-term option.
The right system should feel boring in the best possible way. It starts each day, moves the required water, and gets on with the job while you get on with yours. If you are choosing one for a remote property, spend the effort on sizing and component quality early. That is what turns a pump setup from another piece of equipment into a dependable part of the property.
